Installing Porcelain Pavers on a Raised Pedestal System

To install porcelain pavers on a raised pedestal system, place manufacturer-approved structural pavers on adjustable supports above a stable, draining substrate, then complete the specified perimeter restraint and safety details. Buzon USA West identifies 20 mm and 30 mm outdoor structural porcelain among the available options; thickness alone, however, does not establish suitability for a particular support layout.

Successful porcelain paver pedestal installation coordinates the walking surface, supports, waterproofing, and underlying structure. For roofs and balconies, a qualified designer must verify the complete assembly before installation begins.

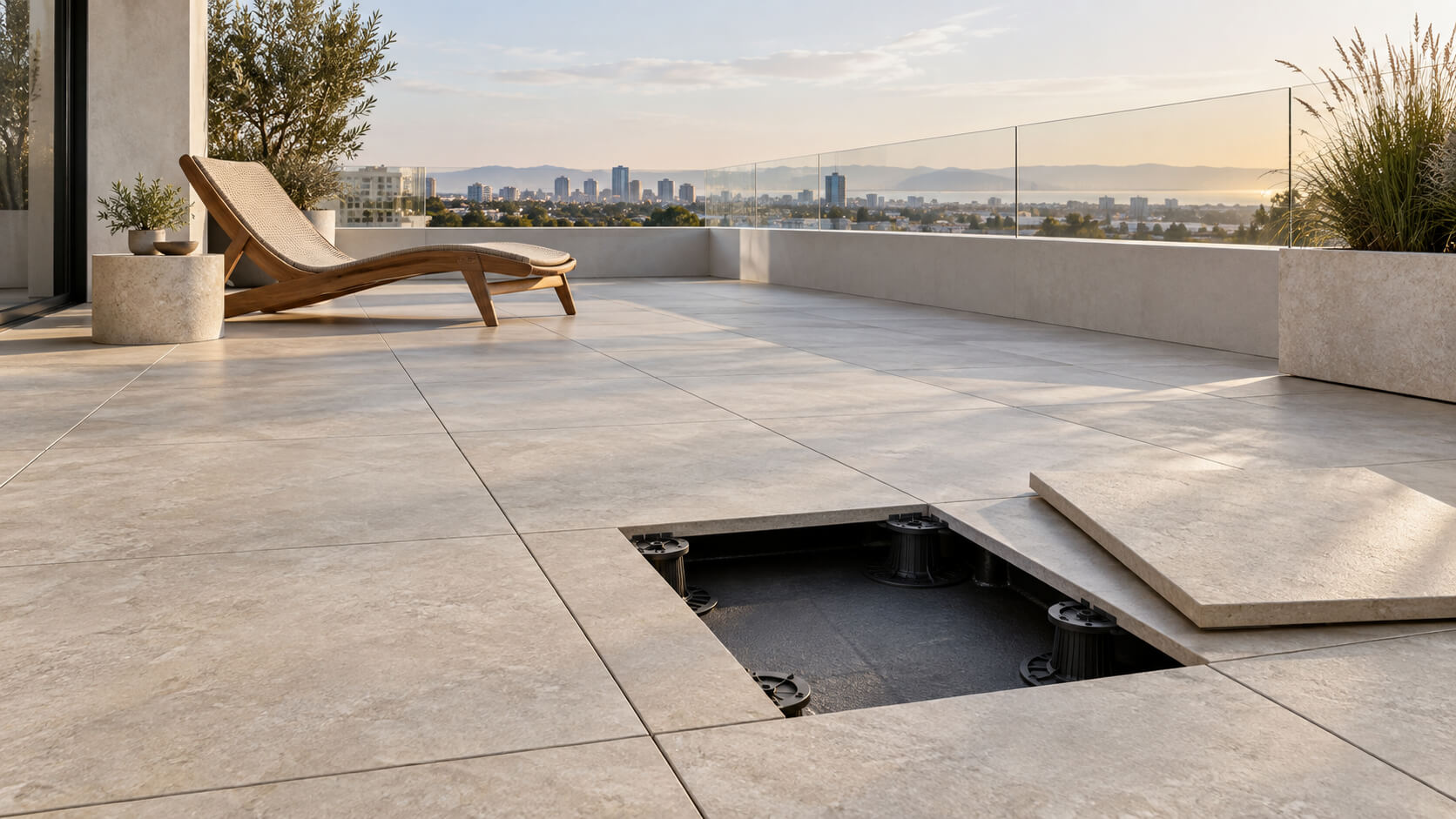

What Is a Raised Pedestal Paving System

A pedestal system creates an elevated walking surface using individual supports beneath pavers. Adjustable columns set the finished height; spacer tabs establish open joints. Beneath the paving, a void accommodates drainage and access to the substrate.

Porcelain is a dense ceramic material. TCNA’s Porcelain Tile Certification guidance defines it by water absorption of 0.5% or less, measured using ASTM C373. This classification describes moisture absorption, not structural load capacity.

The system’s appeal is practical: it separates the desired walking elevation from the drainage plane below. Matrix Pedestals’ installation guide identifies rooftops, terraces, balconies, and plazas as common applications.

Benefits of Porcelain Pavers on Pedestals

A level finish above a draining base. Adjustable supports can compensate for a sloping substrate. Archatrak’s pedestal installation guide specifies a minimum 2% substrate slope toward drainage points for its described installation. Follow the project’s approved waterproofing details when establishing the actual slope.

Access for future work. Stone Initiatives identifies easier access to services as a benefit of raised paving. Removable units can provide access to drains and waterproofing, although restraint hardware may require a specific removal procedure.

Less routine surface treatment. Belgard states that its porcelain pavers do not require sealing. That can simplify care compared with materials that need periodic protective treatments; cleaning remains necessary.

Flexible material selection. Bison documents stone, concrete, and wood appearances in its 2CM porcelain range. Explore SolidShape’s patio paver options, then request written pedestal-use approval for the exact product selected.

Suitable Applications and Important Limitations

Raised porcelain paving suits roof terraces, balconies, podium courtyards, and existing structural patios where drainage access and finished elevations matter. Matrix’s guide emphasizes membrane protection when supports sit above waterproofing.

For example, on a terrace over an occupied room, plan both an accessible drain location and a removable route to it. A planter permanently covering that route undermines the system’s serviceability.

Avoid treating ordinary pedestrian pedestal paving as a driveway system. TileBar’s installation documentation limits its described raised application to pedestrian traffic. Hot tubs, masonry kitchens, and heavy planters also need project-specific structural assessment.

Soft soil, moving slabs, and compressible roof layers require a designed support solution. Elevating the finish cannot correct an unstable foundation. Exposed roofs additionally need wind assessment: Buzon UK explains that wind-generated pressure differences can lift unsecured pavers.

How Porcelain Paver Pedestal Installation Works

Establish the structure and drainage

The designer and installer first confirm allowable loads, substrate condition, waterproofing compatibility, drainage outlets, and available height. Include occupants, furniture, snow where relevant, and concentrated loads. Protective pads must be compatible with the membrane; Matrix advises following the waterproofing manufacturer’s requirements.

Plan the grid and finished elevation

Set the finished elevation against door thresholds and adjacent surfaces. Coordinate waterproofing upstands, accessible transitions, and guard heights before ordering supports.

Map full pavers, perimeter cuts, access points, and pedestal heights. Buzon’s positioning guidance varies layouts with paver dimensions and thickness. Obtain the approved support drawing rather than applying one grid to every format.

Specify the complete support assembly

Review pedestal working loads alongside paver spanning and impact performance. RYNO’s strength-testing explanation distinguishes pedestal compression testing from the behavior of the complete paving system.

Bison requires its Paver Tray beneath its 2CM pavers when installed over Bison pedestals. Other systems use different backing requirements. Stone Initiatives recommends testing concentrated loads and impact resistance for porcelain on the intended support system.

Install supports and approved restraint

Installers position supports, correct their bearing angle, and adjust heights while checking adjacent units for rocking and uneven edges. Archatrak’s installation guide allows approved rubber shims for final adjustments.

Maintain the specified open joints and perimeter movement allowance. Complete edge containment and any engineered wind restraint, then check drainage and record how access pavers are removed. Cutting, waterproofing work, and structural alterations belong with qualified trades following the relevant safety procedures.

Design Styles for Raised Porcelain Terraces

Contemporary concrete finishes

Use a consistent rectangular or square grid with restrained furniture and metal detailing. Align joints with major architectural lines where the support layout permits. This is a design recommendation that helps the paving read as part of the building.

Warm stone inspired spaces

Beige limestone or travertine appearances pair naturally with timber furniture and planting. Compare samples across several faces before choosing. SolidShape’s porcelain versus natural stone paver comparison helps frame the choice between a manufactured appearance and natural variation.

Wood effects and longer formats

Wood-look porcelain can continue a warm interior palette outdoors. Long formats need their own support design: Archatrak publishes a dedicated pedestal-supported rail method for porcelain planks. Select the plank and supporting assembly together.

Practical Selection Checklist

•         Obtain written approval for the exact paver size, thickness, support configuration, and intended traffic. SolidShape’s guide to paver thickness provides useful background.
•         Request water absorption, breaking-strength, and impact data. Surface hardness or abrasion ratings do not establish spanning capacity; Stone Initiatives evaluates these structural concerns separately.
•         Check the manufacturer’s Exterior, Wet use classification where applicable. TCNA’s ANSI A326.3 FAQ explains that 0.42 wet DCOF relates to an interior category and is not a universal outdoor approval.
•         Obtain freeze-thaw suitability for the selected product and confirm pedestal temperature limits for the local climate.
•         Verify support height, slope correction, roof-layer compression, wind restraint, and any required noncombustible components.
•         Include trays, perimeter details, cutting, delivery, spare pavers, and future access in the budget. Require written maintenance instructions for the complete system.

How Pedestals Compare with Four Alternatives

The following cost bands are relative budgeting judgments for comparable projects, not published dollar quotations. Site preparation can change their order. TCNA’s absorption limit applies to porcelain across installation methods; assembly durability still depends on appropriate support.

Archatrak publishes separate pad and rail installation methods because these assemblies solve different constraints. For a garden patio without an access void requirement, consider SolidShape’s porcelain pavers on gravel guide before paying for elevation.

Maintenance and Expected Longevity

Follow the paver manufacturer’s cleaning instructions. Archatrak’s exterior porcelain maintenance guidance recommends water or diluted neutral detergent for routine cleaning and avoiding abrasive tools. Clear spills promptly, rinse away cleaner, and avoid adding coatings without approval for the intended exposure.

Include joints, outlets, restraint components, and support stability in inspections. As a practical maintenance recommendation, inspect at seasonal changes and after severe storms; increase the frequency beneath trees or in heavily used areas. Have loose or cracked units assessed promptly.

An exact lifespan cannot be assigned to every raised porcelain deck. Pavers, supports, connections, and waterproofing age differently, and a product warranty is not a prediction for the whole assembly. Ask for documented warranties and replacement availability rather than accepting an unsupported universal lifespan.

Common Installation Mistakes

Equating pedestal strength with deck capacity. A strong support does not prevent a paver from failing between supports. Stone Initiatives identifies point loads and impacts as distinct failure risks.

Confusing drainage units. A 2% slope means a 2-unit fall over 100 horizontal units. It is approximately 1.15 degrees, not 2 degrees. Copy the approved drainage design accurately.

Assuming dry installation excludes every adhesive. Open joints generally remain ungrouted, but approved tray or backing assemblies may require adhesive. Bison’s Paver Backer Installation Guide specifies an adhesive pattern.

Leaving edges or access unresolved. Archatrak requires containment; exposed locations may need additional wind restraint. Plan drainage access before furniture and planting are fixed in place.

Is a Raised Pedestal System Worth It

It is most compelling when elevation adjustment, roof access, and replaceable paving solve real project needs. On an uncomplicated ground-level patio, aggregate bedding may deliver the required result with fewer components.

Support quantities illustrate why a detailed quotation matters. An illustrative 10-by-10 grid of full pavers has 121 corner-support positions. Adding one center support beneath each of its 100 pavers increases the total to 221, before special details. These are calculated layout quantities, not a universal support specification.

For a component-price reference, Archatrak’s retail store listed Premier Self Leveling Pedestals at US$9.35–$18.80 each when checked in September 2026. This is support pricing only; it excludes the paving, installation, and other project costs. Confirm current prices and the required models before budgeting.

Compare complete installed quotations, including waterproofing work, trays, restraint, access, and labor. Evaluate the ability to inspect and repair the roof over its service period. A specific resale premium cannot be promised from the available evidence.

Frequently Asked Questions

Can ordinary porcelain tiles be installed on pedestals?

Only use products explicitly approved for the intended pedestal assembly. Buzon distinguishes outdoor structural pavers from thinner interior products; thickness alone is insufficient.

How many pedestals does each paver need?

Follow the approved layout. Corners can share supports, while center or intermediate supports depend on format, thickness, loading, and backing requirements.

Do pedestal pavers need grout?

Usually no. Standard raised systems use open joints for drainage. Approved backing adhesives and perimeter details are separate requirements.

Can pedestals go over cracked concrete?

Potentially, if a professional confirms the slab remains stable and suitable. NT Pavers makes structural soundness a condition; supports cannot repair active movement.

Does the surface underneath still need a slope?

Yes, water needs a route to drainage. Archatrak specifies 2% for its described substrate installation; follow the approved project details.

Are porcelain pedestal systems suitable for freezing climates?

They can be, with verified frost-resistant pavers, suitable supports, and functioning drainage. Low absorption alone does not certify the entire assembly.

Can wind lift porcelain pavers?

Yes. Buzon UK identifies this risk for unsecured elevated paving. Exposure and building geometry determine the engineered restraint requirements.

Are outdoor porcelain pavers slippery?

Performance depends on the finish and conditions. TCNA advises considering contaminants, drainage, maintenance, and intended use alongside DCOF results; no surface guarantees slip prevention.
