How Do You Dry Lay Porcelain Pavers on Gravel?

To dry lay porcelain pavers on gravel, prepare a stable subgrade, install the specified aggregate base and bedding, secure the perimeter, and place approved exterior pavers with spacers and continuous support. Porcelain itself absorbs 0.5% water or less under ASTM C373, according to the Tile Council of North America’s Porcelain Certification guidance. Water therefore needs a designed route through the joints, across the surface, or out of the base.

The critical decision is the complete installation system. Decorative gravel, a structural aggregate base, and the fine bedding immediately beneath a paver perform different jobs.

What Is Dry Laying on Gravel, and Why Choose It?

Dry laying supports pavers on an unbonded bed without attaching them with mortar or adhesive. Kronos Ceramiche’s Dry Laying instructions illustrate the method for outdoor landscape applications.

Use purpose-made exterior pavers. Archatrak offers 20 mm, or 2 cm, porcelain pavers for approved outdoor systems. Thickness alone does not establish suitability: dimensions, support conditions, traffic, and the manufacturer’s installation detail also matter.

In an open-graded system, aggregate contains connected voids that allow water movement. A dense-graded base includes smaller particles that fill more of those spaces. Do not substitute one grading for another simply because both suppliers call their material “gravel.”

Explore Solidshape’s outdoor porcelain paver options, then obtain the installation instructions for the exact product before ordering.

What Are the Main Benefits?

•         Access for repairs: Unbonded units can be lifted and reset. Porcea Stone identifies removability as an advantage, making localized adjustment more practical than breaking out a bonded surface.
•         Potential drainage through joints: An approved open-graded assembly provides a water pathway below the paving. Aura Stone’s gravel-installation guide emphasizes that drainage also depends on the base, slope, and site conditions.
•         Reduced surface treatment: MSI states that its Arterra porcelain pavers do not require sealing. Confirm the selected product’s instructions; joint maintenance remains separate.
•         Coordinated outdoor design: MSI’s Arterra range includes matching coping and indoor/outdoor combinations. Coordinating these elements can simplify transitions between a terrace, pool surround, and adjoining interior.

Where Is Gravel Installation Appropriate?

Ground-level patios, garden paths, courtyards, and pedestrian seating areas are the clearest applications. Aura Stone identifies these uses while recommending professional review for pools, steps, and demanding sites.

For a dining terrace, specify continuous, stable paving beneath moving chairs. Separated stepping stones suit an informal garden route but need a different layout from an accessible circulation path.

Do not extend a pedestrian detail to driveways, hot tubs, masonry kitchens, or heavy planters without load verification. Belgard’s installation guide separates pedestrian aggregate systems from bonded concrete assemblies for light vehicles. Roof terraces also require structural, waterproofing, drainage, and wind assessment.

Soft ground, persistent saturation, and steep slopes need a site-specific design before excavation.

How Do You Install Porcelain Pavers on Gravel?

1. Resolve Drainage and Finished Levels

Set the finished height against thresholds, adjoining paths, and drainage outlets. Have a qualified installer assess soil infiltration and whether an underdrain is necessary; gravel cannot dispose of water trapped above impermeable soil.

Write the slope units explicitly. Archatrak’s sand-over-gravel guidance uses 2%, equivalent to 20 mm per meter. Belgard’s open-graded detail specifies 2 degrees, approximately 3.49%. These are different specifications. Follow the chosen assembly and reconcile its fall with access requirements.

2. Excavate and Prepare the Subgrade

Locate buried services before digging. Remove vegetation and unsuitable organic material, and address soft spots. Porcea Stone’s gravel guide makes excavation depth dependent on loading, soil condition, and drainage.

Use the specified geotextile to separate soil from aggregate where required. Its purpose is separation and filtration; it does not strengthen an unsuitable subgrade by itself. Extend the prepared area sufficiently to support the perimeter restraint.

3. Construct the Base and Bedding

Compact the specified base in lifts appropriate to the equipment. Maintain a consistent bedding thickness rather than using extra loose material to fill depressions.

As a product-specific example, Belgard’s Porcelain Pavers Installation Guide, page 15, shows a compacted ¾-inch open-graded aggregate base, topped by 2 inches of ⅜-inch open-graded bedding aggregate. Base depth depends on soil, climate, and hydraulic design. The detail includes geotextile and is intended for professional design review.

Aggregate size describes the stones; layer thickness describes the depth installed. They are not interchangeable measurements.

If the selected product requires sand bedding, follow the separate method for dry laying porcelain pavers on sand. Do not combine incompatible details.

4. Install Restraints and Check the Layout

Use an edge restraint approved for the base type and paver thickness. Porcea Stone calls for a secured perimeter unless a sufficiently rigid existing edge provides restraint.

Dry-plan rows against doorways and boundaries before cutting. Avoid narrow perimeter pieces, and check actual dimensions across several units so the layout accounts for joints.

5. Place and Space the Pavers

Screed the bedding to a flat plane following the drainage fall. Place units without disturbing it and check for rocking. Lift and correct the bedding beneath unstable pavers.

Kronos warns against butt-jointing because contact increases chipping risk. Joint widths vary: Belgard specifies 4 mm, while Archatrak specifies at least 3/16 inch, approximately 4.8 mm. Use the chosen system’s spacers.

Belgard prohibits plate compactors on its installed porcelain pavers. Follow product-specific seating instructions and use suitable wet-cutting equipment with required protective measures.

6. Complete Compatible Joints

Leave joints open only when the assembly permits, or use an approved filler. Check its minimum joint width, depth, bedding compatibility, and curing conditions.

Alliance’s Gator Nitro instructions warn that filler can migrate into large aggregate voids and cannot prevent movement caused by inadequate preparation. A filler approved for one bedding grading may therefore be unsuitable for another.

Which Design Styles Work Best?

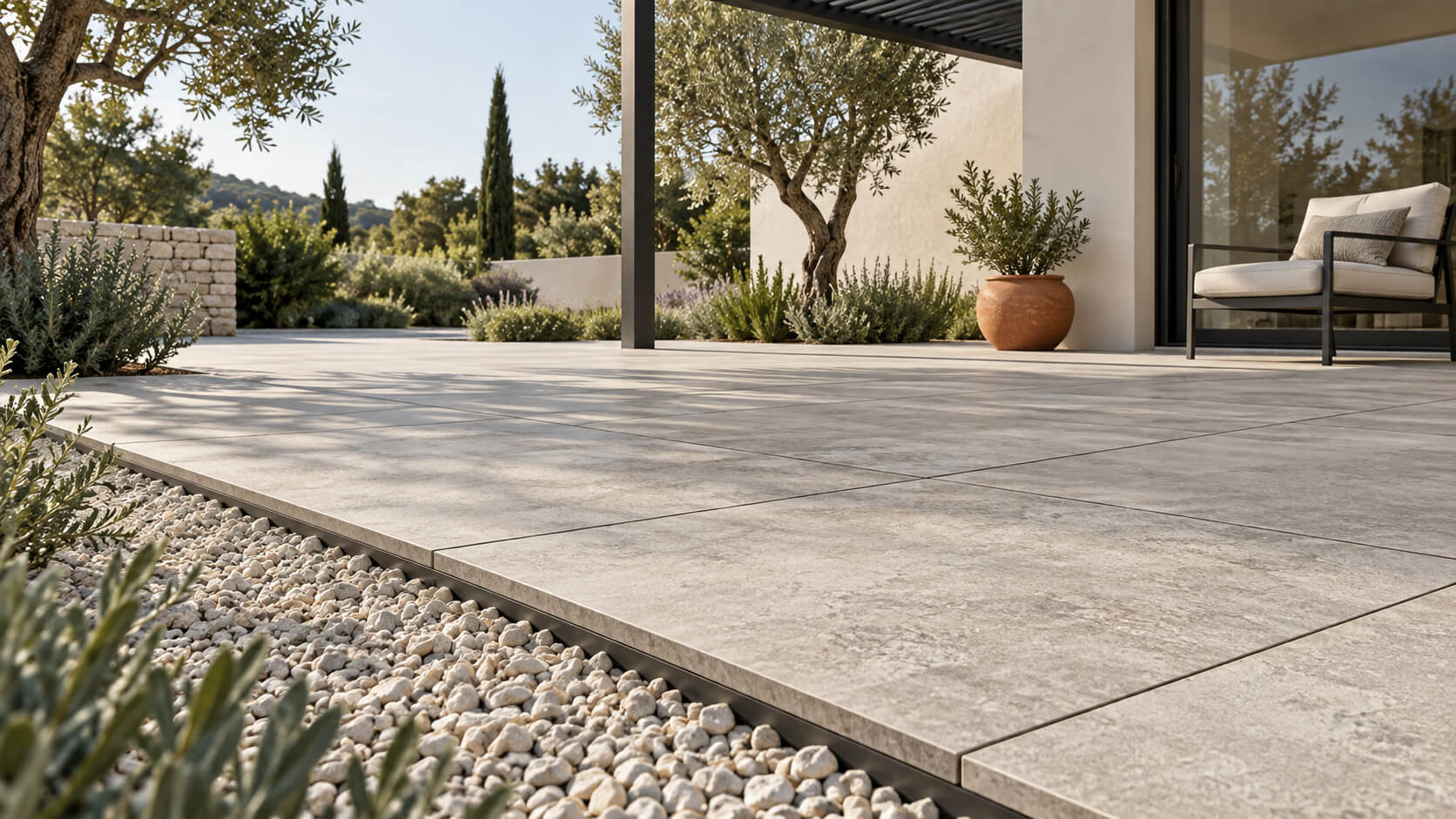

Contemporary Courtyards

Choose concrete-look squares with restrained variation and align joints with the main building elevation. A continuous grid creates a clear relationship between paving, doors, and furniture. Resolve cuts at visible edges before installation.

Mediterranean Terraces

Pair limestone- or travertine-look porcelain with warm plaster, timber, and planting. Review several sample faces together to assess repetition. Treat texture and wet-use suitability as technical criteria alongside color.

Japanese-Inspired Garden Paths

Use stone-look stepping pavers within a gravel landscape, with consistent spacing and deliberate changes of direction. Keep decorative gravel outside the specified supporting bed. Position units to provide comfortable footing rather than choosing spacing only for photographs.

What Should You Check Before Buying?

•         Obtain written gravel-installation approval for the exact thickness, format, support method, and expected loads.
•         Request water-absorption data and exterior freeze–thaw results, such as testing under ASTM C1026. Low absorption does not prevent frost movement in wet soil.
•         Check wet-use suitability. TCNA’s ANSI A326.3 FAQ identifies Exterior Wet as a manufacturer-declared category; 0.42 wet DCOF alone does not establish outdoor suitability.
•         Review breaking-load and abrasion data separately. Surface-wear ratings do not establish the load capacity of the installed assembly.
•         Match aggregate grading, bedding depth, spacers, edging, and joint filler within one compatible specification.
•         Budget for excavation, disposal, drainage, freight, cutting, labor, and spare units; request cleaning instructions and warranty exclusions.

How Does Gravel-Set Porcelain Compare With Alternatives?

The USD ranges below cover pavers only per square foot, excluding preparation, supporting systems, installation, and delivery. Archatrak publishes $6–$18 for 2 cm porcelain. Majestic Rock & Material’s 2026 Inland Empire guide lists $2–$8 for concrete pavers at its Norco yard. These are supplier benchmarks, not Solidshape quotations or national averages.

Compressive strength and porcelain breaking-load results measure different properties and should not be ranked directly. Concrete may better suit the budget; an existing sound slab can favor bonded installation. For authentic mineral variation, consider the trade-offs between porcelain and natural stone pavers.

How Should You Maintain It, and How Long Will It Last?

Sweep grit and leaves, remove spills, and rinse away cleaner. As a practical inspection schedule, check joints, restraints, and drainage after winter and major storms. Reset rocking units promptly rather than topping up joints around them.

Follow cleaner and pressure-washer restrictions for both pavers and jointing material. Keep planting soil from washing into joints. Solidshape’s outdoor tile and paver maintenance guide provides a seasonal framework.

A universal service-life figure for gravel-set porcelain is not established by the documents reviewed. MSI advertises lifetime residential and 10-year commercial warranties for Arterra, but warranty coverage is not a prediction of installation lifespan. Drainage and base stability remain decisive.

What Common Mistakes Should You Avoid?

Avoid substituting rounded decorative gravel for specified bedding, omitting restraints, confusing aggregate size with layer depth, or treating low water absorption as proof of drainage. Do not use a joint compound to stabilize rocking pavers.

Another error is transferring dimensions from a stepping-stone detail to a full patio. The loading, edge conditions, and water-management requirements differ. Ask the installer to document the complete section before materials arrive.

Is Dry Laying Porcelain Pavers Worth It?

It can be worthwhile when the site suits an unbonded pedestrian system and accessible repairs matter. Avoiding an unnecessary concrete slab can reduce work, but difficult excavation or drainage can outweigh that saving.

Using Archatrak’s published range, 250 square feet requires $1,500–$4,500 in pavers alone, before waste and other costs. Compare complete quotations with equivalent drainage and preparation. No verified resale-return percentage specific to gravel-set porcelain supports promising that the installation will pay for itself.

Frequently Asked Questions

Can porcelain pavers sit directly on gravel?

Yes, when their manufacturer approves the specified bedding and supporting assembly. A loose decorative layer is not an equivalent foundation.

How deep should the gravel base be?

Depth depends on soil, climate, loading, and drainage. Belgard’s open-graded detail leaves final base depth to project design.

Can I use pea gravel beneath porcelain pavers?

Do not substitute rounded pea gravel for specified aggregate. Require confirmation of grading and stable support from the system supplier.

Do I need geotextile fabric?

Use it where the design requires soil separation or filtration. Archatrak specifies separation fabric over compacted soil in its sand-over-gravel system.

What gap should I leave between pavers?

Follow the product instructions: Belgard specifies 4 mm; Archatrak specifies at least 3/16 inch. Do not butt units together.

Can I run a plate compactor over porcelain?

Belgard expressly prohibits this. Compact the supporting layers before laying, following the selected manufacturer’s instructions.

Will the patio automatically be permeable?

No. Open joints need compatible bedding, a draining base, and suitable infiltration or an outlet. Porcelain itself is very low-absorption.

Can gravel-set porcelain survive freezing weather?

Exterior products with appropriate freeze–thaw performance can, but waterlogged soil and base movement can still destabilize the installation.

Can I use this method for a driveway?

Only with an expressly approved vehicle-rated assembly. A pedestrian gravel detail and a paver’s thickness alone are insufficient.
