Install movement joints as planned, unobstructed breaks in the tile assembly, using a compatible flexible sealant with backing or an appropriately rated movement profile. Locate them at restrained edges, changes of plane, structural joints, and required intervals within the tiled area. The Tile Council of North America’s Placement guidance calls for movement accommodation in every tile installation and identifies Handbook detail EJ171 as the design reference.

The essential decision comes before installation: where can the assembly move without stressing the finish?

What Are Tile Movement Joints and Why Are They Used?

A movement joint separates adjoining parts of a tiled assembly so they can move relative to one another. Grout fills ordinary tile joints; a movement joint uses a deformable seal or purpose-designed profile.

Perimeter joints isolate tile from walls and columns. Field joints divide larger surfaces. Structural expansion joints accommodate movement between building sections and require a corresponding engineered detail through the finishes.

Their use is a construction requirement rather than a decorative trend. LATICRETE’s TDS 252 explains how temperature changes, concrete shrinkage, moisture, and building movement create stresses. Even a hard porcelain surface belongs to an assembly whose components change dimension.

What Benefits Do Correctly Installed Joints Provide?

• Reduced stress on the finish. LATICRETE’s TDS 252 links restrained movement with cracked grout, lost adhesion, and tile tenting. A functioning joint provides space for that movement.
• Better protection at exposed edges. Schluter’s DILEX-KSN documentation describes metal anchoring legs that support adjacent tile edges under commercial traffic.
• A repairable component. DILEX-KSN has a replaceable rubber insert, allowing localized maintenance when that insert is damaged.

These benefits depend on correct sizing and installation. A flexible bead over a mortar-filled gap cannot release the underlying restraint.

Where Should Movement Joints Be Located?

Plan joints around the tiled perimeter, against fixed penetrations, at floor-to-wall junctions, and at relevant substrate transitions. Instarmac’s technical guidance also identifies independently controlled underfloor heating zones as locations needing movement consideration.

For preliminary US planning, the Ceramic Tile Education Foundation’s Tips for Specifying Tile, Stone & Glass for Kitchen & Bath Installations summarizes EJ171 guidance:

• Interior areas under ordinary conditions: maximum 25 feet in each direction.
• Exterior installations: 8–12 feet in each direction.
• Interiors exposed to direct sunlight or moisture, and above-ground slabs: maximum 12 feet in each direction.

These are planning limits, not a completed design. The project professional must verify current EJ171 requirements, exposure, joint width, and assembly conditions; closer spacing may be necessary.

For example, an enclosed room with strong afternoon sun should not automatically receive the same layout as a shaded interior.

Ordinary surface profiles are unsuitable over structural expansion joints unless specifically approved. Schluter explicitly excludes DILEX-BWS from that use. Balconies, pools, and suspended assemblies also need coordinated waterproofing and structural details.

How to Install Movement Joints Correctly

Establish the joint layout before setting tile

Have the designer identify joint positions, widths, and details on the drawings. Mark existing substrate joints before they become concealed. Preserve structural movement joints through the assembly; any treatment of nonstructural control joints must follow the specified membrane system.

Choose the tile and joint layout together. When reviewing SolidShape’s porcelain tile options, consider how the module will intersect necessary joint lines, thresholds, and fixed walls.

Keep the separation clear

Form the opening as work proceeds. Remove mortar squeeze-out, grout, spacers, and debris that could bridge it. LATICRETE’s TDS 252 recommends a minimum 1/4-inch perimeter gap, approximately 6 mm, while the project specification determines the actual requirement.

The depth of the movement separation and the depth of the sealant bead are different. A deep opening does not need to be filled solid with sealant.

Width must accommodate the anticipated movement. For illustration, LATASIL’s published ±25% rating corresponds mathematically to ±1.5 mm at a 6-mm joint width. That calculation is not a complete joint design: installation temperature, tolerances, and expected movement still require evaluation.

Prepare the sides and install backing

Prepare sound joint faces and use primer where the sealant manufacturer requires it. Follow its adhesion-testing instructions for the actual substrates.

Install compatible backer rod at the specified depth. Where approved for a shallow opening, use bond-breaker tape. The International Masonry Institute’s EJ171N perimeter detail shows backing that prevents three-sided adhesion: sealant should grip the opposing joint faces while remaining free to deform between them.

Apply and tool the specified sealant

Select an ASTM C920 sealant with the required movement class and application approvals. For traffic areas, verify Use T classification and abrasion limitations; a bathroom caulk label is insufficient.

Gun the bead without voids, tool it against both faces, and protect it while curing. Follow product-specific dimensions. Sika’s Sikaflex-1A Product Data Sheet, October 2025 specifies a general minimum depth of 1/4 inch and maximum of 1/2 inch, with 1/2-inch depth for horizontal traffic joints. A generic width-to-depth rule must not override those requirements.

The same sheet lists a 4–7-day cure at 73°F and 50% relative humidity. Touch-dry appearance is not permission to expose an uncured joint to traffic or immersion; follow the applicable reopening requirements.

Keep planned soft joints clear during tile grout application. Grout and flexible sealant perform different jobs.

Install profiles during tile setting

For a profile system, select the height for the tile and installation method. Fully embed its anchoring legs, support adjacent tile edges, and preserve the flexible center. Schluter’s DILEX-KSN instructions place the profile flush with the tile or up to approximately 1 mm below, never proud of it. Follow the selected profile’s instructions for its separate tile-to-profile joints.

How Can Movement Joints Fit Different Design Styles?

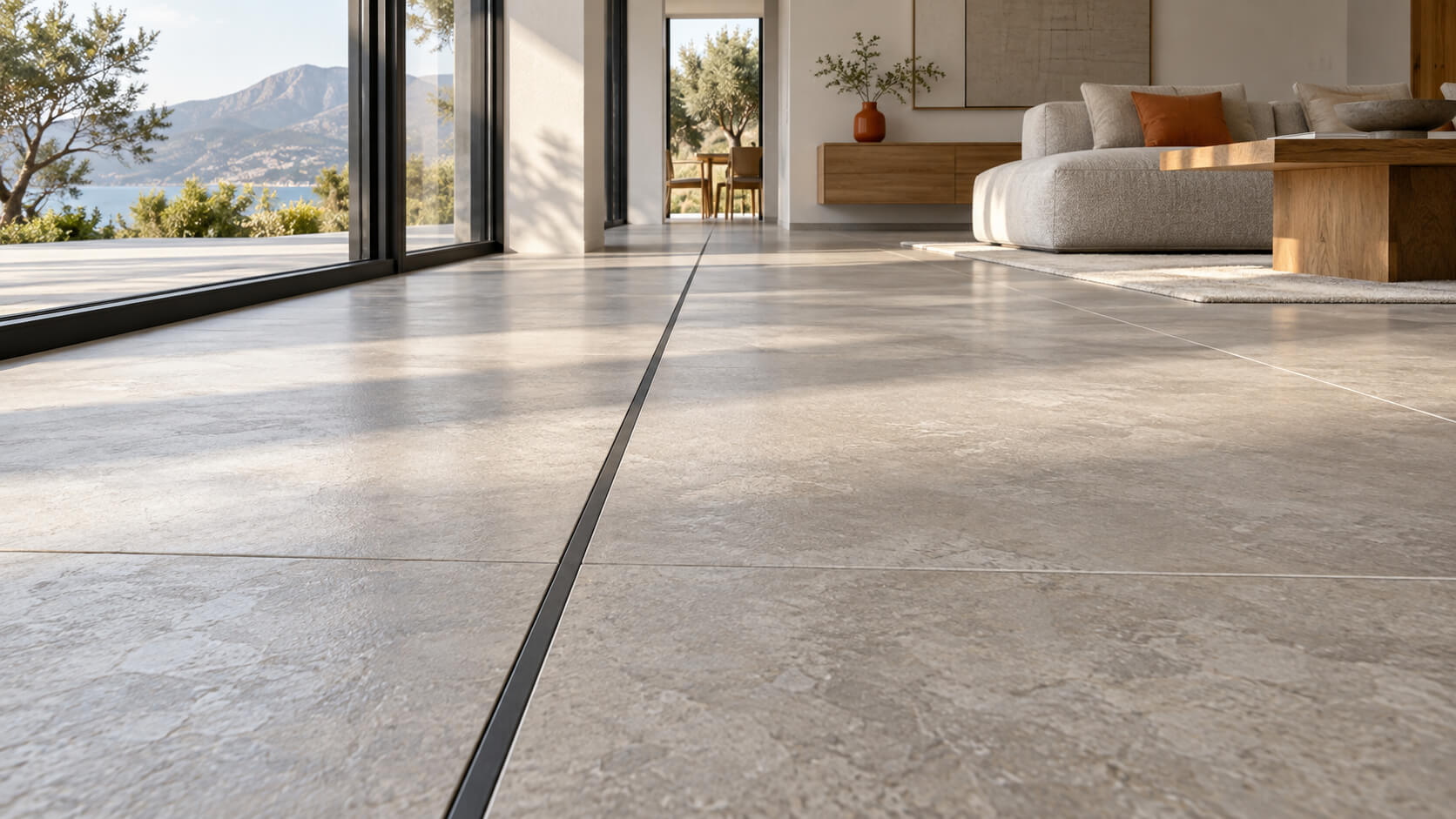

Minimalist and large format interiors

Align field joints with the approved tile grid and choose a compatible sealant close to the grout color. Review SolidShape’s guidance on choosing grout color for tile when developing a sample board. Matching tone reduces visual contrast; it does not justify narrowing the required joint.

Traditional stone and patterned floors

Where technically permissible, integrate joint lines into borders, thresholds, or changes in pattern. For natural stone, test the sealant for staining and adhesion before application, as LATASIL’s technical sheet requires.

Contemporary commercial spaces

Use an exposed metal profile as a deliberate division between floor zones. Specify its traffic rating before selecting its finish; the narrowest visible strip may not offer sufficient movement capacity.

A Practical Selection Checklist

• Movement: Confirm calculated displacement and the sealant or profile’s rated capacity.
• Dimensions: Coordinate opening width, backing depth, tile thickness, and profile height.
• Exposure: Check sunlight, heating, freeze-thaw conditions, chemicals, and any immersion approval.
• Compatibility: Verify adhesion to tile, stone, metal, and adjoining waterproofing components.
• Traffic: Check mechanical loading and abrasion limits separately from movement class.
• Budget: Request itemized prices for joint preparation, backing, primer, material, installation, and future replacement.

ASTM C920 class describes movement performance, not expected service life. Janka hardness or tile abrasion ratings cannot establish whether a sealant is suitable.

Sealant Joints Compared With Four Alternatives

The comparison uses silicone as the baseline. Named products illustrate documented properties, not universal approvals. Cost bands are relative planning judgments, not verified dollar quotations; obtain project-specific prices.

Material/Option	Appearance	Durability with data	Maintenance	Cost range	Best use case
Silicone soft joint	Color-matched bead	LATASIL: ASTM C920 Class 25; ±25% movement	Inspect; renew damaged sealant	Low–medium	Approved wet-area and perimeter joints
Polyurethane sealant	Tooled bead	Sikaflex-1A: Class 35; ±35% movement	Inspect adhesion and surface	Low–medium	Approved traffic joints and compatible substrates
PVC movement profile	Consistent narrow strip	DILEX-BWS: 5-mm movement zone; limited movement capacity	Clean; inspect for damage	Medium	Residential and moderate-traffic tile fields
Metal-supported profile	Defined metal edges	DILEX-KSN: 11-mm replaceable rubber zone; heavy commercial edge protection	Clean; replace damaged insert	Medium–high	Commercial floors needing edge protection
Engineered expansion profile	Wider architectural joint	DILEX-BT: 30-mm center accommodates ±5 mm	Inspect to system requirements	High; quoted	Building joints within approved movement limits

Choose silicone for compatible wet details, polyurethane where its traffic approval and substrate compatibility fit, and profiles where edge protection or replaceable inserts justify the additional detailing. A structural joint requires an engineered solution rather than whichever option looks least conspicuous.

Maintenance and Expected Longevity

Follow the selected product’s cleaning instructions. LATASIL specifies neutral-pH cleaners. As a practical inspection schedule, check joints annually and after leaks, substantial building work, or unusual movement; inspect demanding commercial areas more frequently.

Look for detached edges, splits, hardened debris, displaced inserts, and damaged tile edges. Repeated separation calls for investigation of adhesion, joint geometry, or excess movement before resealing.

There is no defensible universal lifespan for all tile movement joints. Product warranties and laboratory movement ratings are not predictions of years in service. Correct geometry, exposure, cleaning, and timely repairs determine performance.

Common Installation Mistakes

The recurring errors are filling movement openings with grout, bonding sealant to three sides, selecting products by color alone, and bridging structural joints. RUBI’s Movement Joints and Grout Selection also warns that stronger grout cannot replace movement accommodation.

Do not assume an uncoupling membrane removes the requirement: Schluter’s DITRA FAQ explicitly says it does not.

Persistent cracks deserve diagnosis. SolidShape’s explanation of why tile grout cracks helps distinguish movement-related symptoms from other installation problems. Cutting new joints into an existing floor requires professional assessment, particularly above heating cables or waterproofing.

Is Installing Movement Joints Worth It?

Yes, where required: they are part of a complete installation. Compare the cost of planned detailing and accessible maintenance with removing tiles, rebuilding damaged layers, and finding replacement material later.

Ask bidders to price the same joint layout and materials. A cheaper quotation that omits required joints is not equivalent work. There is no verified movement-joint-specific resale premium to promise; the practical value is reducing preventable failure and disruption.

Frequently Asked Questions

Does a small room need movement joints?

Yes. TCNA notes that perimeter accommodation may suffice in small rooms, depending on the installation conditions.

Are movement joints the same as grout joints?

No. Ordinary grout joints are rigid fillers; movement joints use a specified flexible seal or engineered profile.

Can epoxy grout replace flexible sealant?

No. Grout strength does not provide the movement capability required of a designed soft joint.

Does an uncoupling membrane eliminate field joints?

No. Schluter confirms that DITRA installations still require perimeter and field movement accommodation.

Should shower corners contain grout or sealant?

Use the specified movement detail, usually suitable flexible sealant or an approved corner profile. Maintain the underlying waterproofing system.

Can movement joints be hidden under baseboards?

Dry-area perimeter gaps can be concealed where the detail permits. They must remain free of rigid bridging material.

Can a structural joint move to suit the tile pattern?

Do not relocate or bridge it for appearance. The design professional must coordinate its continuation through the assembly.

Can joints be added after tiles start lifting?

Obtain a professional failure assessment first. Adding a joint does not restore tiles that have already lost their bond.
