How Can You Design with Thin Porcelain Tiles?

Design with thin porcelain tiles by choosing an application-approved product, planning the panel layout around architectural features, and coordinating finish, joints, and supporting construction before ordering. IPA Laboratories identifies 3.5–6.5 mm as a common thickness range for gauged porcelain products tested against ANSI A137.3. That slim profile creates design opportunities, but thickness alone cannot establish suitability for a floor, shower, or countertop.

Start with one focal surface, then resolve the details that make the appearance achievable.

What Are Thin Porcelain Tiles, and Why Are They Popular?

Thin porcelain tiles are fired ceramic finishes manufactured with a reduced cross-section. Large versions are often described as gauged porcelain tile panels or slabs. “Gauged” refers to controlled thickness; it does not mean every product has identical strength or uses.

The Tile Council of North America (TCNA) defines porcelain by water absorption of 0.5% or less, measured using ASTM C373. This classification concerns absorption, not scratch immunity or structural capacity.

TCNA’s Why Tile educational guide describes thin-product categories of 3.5–4.9 mm and 5.0–6.5 mm. Commercial terminology also includes thicker porcelain slabs, so check the actual specification rather than relying on “slim” or “slab.”

Technical Bulletin TB60 documents formats up to 5 × 10 feet (approximately 1.5 × 3 meters). Large faces let patterns extend with fewer interruptions. Explore Solidshape’s porcelain tile collection for visual options, then confirm thickness, format, and application approval for the specific selection.

What Benefits Do Thin Porcelain Tiles Offer?

• Less added thickness: In a simple comparison, a 6 mm tile contributes 4 mm less material depth than a 10 mm tile. Adhesive, preparation, and membranes still count toward the finished buildup.
• Fewer internal joints: One panel spanning a backsplash removes intermediate joints that smaller pieces would require. This is a layout benefit, not permission to eliminate perimeter or movement joints.
• Low water absorption: The ASTM C373 porcelain threshold supports use in moisture-exposed settings when the complete installation is suitable. Waterproofing remains a separate requirement.
• Potential to retain existing finishes: TCNA’s existing-tile guidance permits overlays where the original tile is well bonded and dimensional constraints allow them.

There is a documented renovation example: Converse Winkler Architecture reports installing thin porcelain over existing tile during the Pennsylvania Convention Center’s 54-restroom refurbishment, completed in phases ending in 2024, to reduce construction waste. That demonstrates a possible benefit rather than guaranteeing savings on every project.

Where Can You Use Thin Porcelain Tiles?

Feature walls and backsplashes are natural starting points. Plan sockets, corners, shelving, and exposed edges before fabrication; a visually simple wall may still require complicated cuts.

Shower walls can benefit from fewer joints, but porcelain does not waterproof the wall assembly. TCNA’s shower guidance requires a compatible membrane and backing arrangement. Have a qualified installer coordinate penetrations, corners, and drainage details.

Floors require specific approval. Why Tile identifies the 5.0–6.5 mm category within ANSI A108.19 floor-installation guidance, but that does not approve every tile in that range for every load. Request the manufacturer’s service rating and assembly requirements.

Countertops and furniture need an approved fabrication system. A thin decorative facing should not be assumed to support an overhang, sink, or unsupported span. Ask the fabricator to resolve backing and edge reinforcement.

Exterior work needs additional scrutiny. TCNA notes that even frost-resistant tiles can fail when water collects in installation voids. Thin panels are not substitutes for pedestal-supported pavers; Solidshape’s guide to porcelain pavers on balconies addresses that distinct application.

Avoid overlays on loose finishes, unresolved cracks, or moisture-damaged construction. The new surface cannot repair a failing substrate.

Which Design Styles Work Best?

Warm Minimalism

Choose a restrained limestone or plaster effect with warm white walls, oak cabinetry, and understated metalwork. Specify grout close to the tile’s background color to soften the visible grid.

Review samples under both daylight and the room’s lighting. A polished finish creates stronger reflections; a matte surface can be preferable when visual calm is the goal.

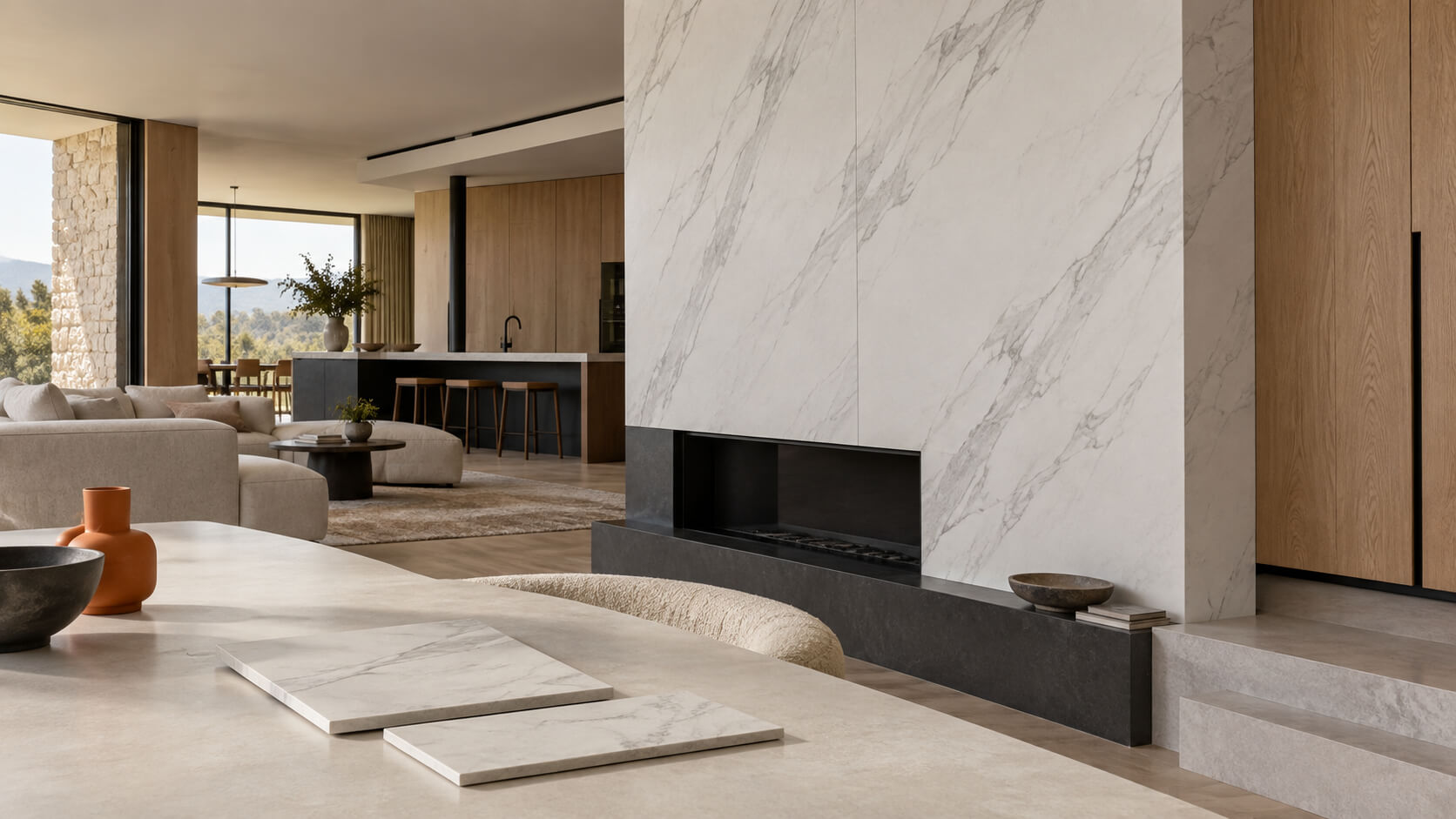

Contemporary Marble Looks

Use marble look porcelain slabs on one principal surface, with quieter cabinetry and flooring nearby. For bookmatched porcelain slabs, approve the actual paired faces and a cut layout before fabrication. A small sample cannot show the complete vein composition.

Position the visual center around the vanity, island, or fireplace opening. Solidshape’s hotel bathroom marble tile guide offers a useful natural-stone reference when deciding which marble character to interpret.

Industrial and Architectural Interiors

Pair concrete-effect panels with walnut, blackened metal, or textured upholstery. Let panel divisions align with cabinetry or wall openings where practical. Use a scaled elevation to avoid narrow leftover strips at the most visible edges.

For a compact bathroom, compare a full-wall panel against smaller modules before choosing. Fewer joints may simplify the composition, but awkward cuts or delivery access can outweigh that advantage.

How Should You Select Thin Porcelain Tiles?

Ask for a coordinated specification covering:

1. Approved use: Confirm wall, floor, shower, countertop, or exterior suitability in writing, including the selected finish and backing.
2. Performance reports: IPA Laboratories lists ASTM C1505 for breaking strength, C1378 for staining, C650 for chemical resistance, and C627 for floor-system testing. These measure different properties; one “hardness” number cannot replace them.
3. Wet-floor suitability: TCNA’s ANSI A326.3 FAQ lists 0.42 wet DCOF as one route to Interior Wet classification, alongside manufacturer declaration. It is not a universal safety threshold or automatic shower-floor approval.
4. Climate exposure: Obtain exterior approval and appropriate freeze–thaw evidence, such as ASTM C1026, for freezing conditions.
5. Substrate tolerances: Installation guidance in technical data sheet TDS 170 limits variation to 1/8 inch over 10 feet and 1/16 inch over 24 inches. Confirm the selected system’s current requirements.
6. Layout and logistics: Check actual panel dimensions, pattern repeats, lifting access, stair turns, and fabrication space. Order from the approved cutting schedule.
7. Complete budget: Include freight, preparation, waterproofing, fabrication, labor, waste, trims, and replacement stock.
8. Maintenance: Obtain compatible cleaning instructions and clarify separate requirements for tile, grout, and sealant.

How Do Thin Porcelain Tiles Compare with Alternatives?

Dollar ranges below are U.S. material-only estimates per square foot from Fixr’s Tile Flooring Installation Cost guide, accessed September 2026. These exclude labor and are category estimates, not Solidshape quotes or thin-panel prices.

TCNA supplies the porcelain/non-porcelain absorption distinction. ASTM identifies the stone specifications; the Natural Stone Institute explains stone-care differences. These tests are not interchangeable durability scores.

Choose conventional porcelain when straightforward installation and replacement matter most, ceramic for decorative variety, and natural stone when geological uniqueness justifies its care requirements.

How Do You Maintain Thin Porcelain Tiles and Extend Their Life?

Remove abrasive debris, clean with a manufacturer-approved product, and rinse away residue. Use soft cleaning tools and address spills promptly. Match the method to the finish rather than assuming every porcelain surface tolerates the same chemicals.

Sealing requirements are product-specific. Check polished surfaces, grout, and specialty finishes separately. Do not apply natural-stone restoration treatments to porcelain; Solidshape’s marble tile polishing guide explains a different maintenance process.

Keep maintenance condition-based: inspect sealant and grout during routine cleaning and arrange repairs when cracking, detachment, or water penetration appears. There is no verified universal service-life figure for all thin porcelain panels. Installation quality, support, exposure, and repairability determine whether a surface remains serviceable.

Technical Bulletin TB60, Installing Gauged (Thin) Porcelain Tile/Panels/Slabs, emphasizes edge support and correct mortar coverage to reduce cracking from impact or concentrated loads. Keep matching spare material and installation records for future repairs.

What Common Mistakes Should You Avoid?

• Selecting by thickness without checking the approved application.
• Treating low absorption as a complete waterproofing system.
• Assuming matte automatically means suitable for wet floors.
• Ordering from a small sample without reviewing full-panel imagery.
• Ignoring delivery routes, cutouts, and exposed edges.
• Expecting adhesive or leveling clips to correct an inadequately prepared substrate.
• Omitting movement joints to create an apparently seamless surface.

Have an experienced panel installer review the design before purchasing. Structural support, wet-area construction, and exterior attachment need appropriate professional coordination.

Are Thin Porcelain Tiles Worth It?

They are worth considering when large-scale pattern continuity or reduced buildup solves a specific design problem. They may offer poor value on a small, complicated surface where numerous cuts and difficult access erase those advantages.

Compare complete quotations. An overlay may avoid demolition, while panel handling and fabrication add costs. IPA Laboratories’ ASTM E917-based life-cycle approach considers materials, installation, maintenance, demolition, and replacement together. Apply that logic instead of assuming thinner material is cheaper or promising an unsupported resale premium.

Frequently Asked Questions

How thick are thin porcelain tiles?

IPA Laboratories commonly tests gauged products between 3.5 and 6.5 mm. Other thicknesses exist; check the exact specification.

Can you install them over existing tile?

Sometimes. TCNA requires well-bonded existing tile, suitable bonding materials, and sufficient allowance for the new assembly’s height or thickness.

Can thin porcelain tiles be used on floors?

Yes, when the specific product and complete assembly are approved for the intended traffic and loading. Wall approval is insufficient.

Are thin porcelain panels suitable for showers?

Approved panels can cover shower walls. A compatible waterproofing system remains necessary, and shower floors require separate suitability checks.

Are thin porcelain tiles durable?

They can perform well when correctly specified and supported. Absorption, abrasion, breaking strength, and installed-system performance answer different durability questions.

Can thin porcelain be used for countertops?

Yes, through an approved fabrication system. Confirm backing, cutout details, edge treatment, and support with the fabricator.

How should you clean thin porcelain?

Use the manufacturer’s recommended cleaner and nonabrasive tools. Remove residue and follow separate instructions for grout and sealant.

Do thin porcelain panels need professional installation?

Large panels should be installed by trained professionals. ANSI A108.19 and installation-system guidance address specialized preparation, handling, bonding, and joint requirements.
