Large Format Tile Installation Planning Guide

Before installing large format tile, the project team must plan the substrate, structural support, waterproofing, tile layout, grout joints, movement accommodation, mortar system, handling route, cutting strategy, transitions, and installer qualifications. These decisions cannot be left until tile-setting begins because the size and rigidity of large tiles magnify surface irregularities, layout errors, incomplete mortar coverage, and structural movement.

ANSI installation guidance requires substrates for tiles with an edge of 15 inches or longer to be flat within 1/8 inch over 10 feet. Industry standards also require at least 80% mortar coverage in dry interior areas and 95% in wet or exterior applications. Meeting those requirements usually depends more on pre-installation preparation than on adjustments made while the tile is being set.

What Is Large Format Tile, and Why Is It Popular?

“Large format tile” is a practical industry term rather than one universally applied retail size. In North American installation guidance, tiles with at least one edge measuring 15 inches or more trigger the stricter substrate-flatness requirement commonly associated with large-format installations. Retailers may also describe tiles larger than 12 × 12 inches as large format, so specifications should always state the exact dimensions rather than relying on the category name alone.

Common residential formats include:

• 12 × 24 inches
• 24 × 24 inches
• 24 × 48 inches
• 30 × 60 inches
• 36 × 36 inches
• 48 × 48 inches

The category also includes much larger gauged porcelain tile panels and slabs. Under ANSI A137.3, a gauged porcelain panel or slab has a facial area of at least one square meter. These products are manufactured to controlled thicknesses and require installation methods different from those used for conventional pressed porcelain tile.

Large-format porcelain is especially common because porcelain tile has a water absorption rate of 0.5% or less when tested according to ASTM C373. Low absorption makes properly rated porcelain useful for bathrooms, kitchens, commercial interiors, and certain exterior environments, although the tile itself does not make the complete installation waterproof.

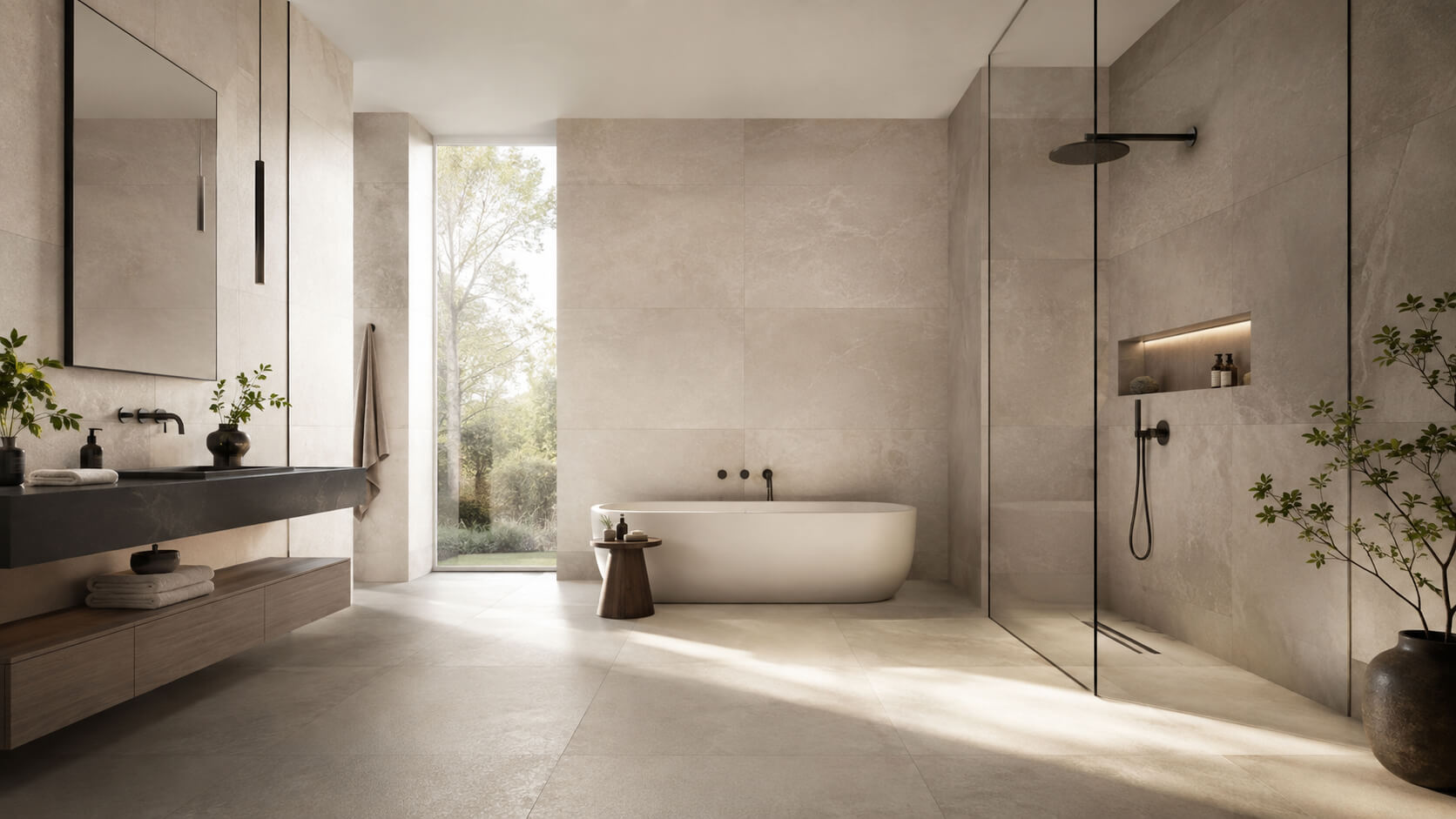

Large tile is popular primarily because it creates visual continuity. Larger pieces interrupt a surface with fewer grout joints, allowing stone, concrete, terrazzo, metal, or wood graphics to read across a broader area. It can make walls appear more monolithic and floors less visually fragmented.

Consumer adoption is still application-dependent. The 2025 U.S. Houzz Bathroom Trends Study found that 6% of renovating homeowners selected extra-large tiles measuring 24 × 24 inches or more for shower floors, an increase of two percentage points. The relatively modest share also reflects a technical limitation: small shower floors with central drains often need multiple slopes, which are easier to form with smaller tile.

Homeowners and design professionals comparing sizes, finishes, and stone-look options can begin with a large-format tile collection, but final approval should be based on product documentation, physical samples, site measurements, and a professional installation assessment.

Benefits of Large Format Tile

Fewer Grout Joints

A 24 × 48-inch tile covers eight square feet before joint allowances, while a 12 × 12-inch tile covers one square foot. Covering the same area with larger pieces therefore requires far fewer tile-to-tile joints.

Fewer joints can make routine cleaning simpler because there is less grout surface exposed to dirt, cleaning residue, and discoloration. This does not eliminate grout maintenance, perimeter joints, movement joints, or sealant transitions.

Greater Visual Continuity

Large pieces allow printed veins and surface graphics to remain visible across a broader field. This is especially effective with marble-look porcelain, limestone-look tile, concrete effects, book-matched panels, and continuous wall cladding.

The visual benefit has a technical condition: the layout must be planned around visible cuts, door openings, niches, drains, and room centerlines. A large tile with a narrow strip at one wall can look less intentional than a smaller format with balanced cuts.

Low Water Absorption When Porcelain Is Used

Porcelain’s maximum ASTM C373 water absorption of 0.5% provides measurable resistance to moisture entering the tile body. This makes porcelain a strong material candidate for wet rooms and exterior applications when the specific finish, thickness, installation assembly, climate rating, and manufacturer instructions are also suitable.

Low tile absorption should not be confused with waterproof construction. Showers, exterior decks, balconies, and other moisture-sensitive assemblies require a complete waterproofing or drainage system behind or beneath the tile.

Broad Design Capability

Digital manufacturing can reproduce marble, travertine, concrete, metal, terrazzo, and wood graphics across large surfaces. Large dimensions reduce the repetition and visual segmentation that can make smaller printed tiles appear less natural.

The design advantage is strongest when several pieces are inspected together. Shade variation, graphic repetition, vein direction, and the number of unique faces should be evaluated before the order is approved.

Long Material Service Potential

The current North American industry-wide ceramic tile Environmental Product Declaration uses a 75-year reference service life because tile is expected to remain in service for the assumed life of the building. This is a life-cycle-assessment assumption rather than a warranty, but it demonstrates that correctly installed ceramic and porcelain tile are treated as long-life finishes.

Actual service life depends on the substrate, structural movement, mortar coverage, moisture management, impact exposure, installation quality, and maintenance.

Plan the Substrate Before Ordering the Tile

Substrate preparation is usually the most important technical part of large format tile installation.

Flatness Is Not the Same as Level

A floor may slope and still be flat. A floor may also be level overall while containing local high and low areas that prevent a large tile from being fully supported.

For tiles with an edge of 15 inches or longer, the substrate should not vary by more than 1/8 inch over 10 feet when measured from high points. Guidance for large panels may also limit local variation to approximately 1/16 inch over 24 inches.

This stricter tolerance matters because a rigid 24 × 48-inch tile cannot conform to a depression or hump. An uneven surface can cause:

• Rocking tiles
• Inconsistent mortar thickness
• Hollow areas
• Excessive lippage
• Poor edge support
• Cracking under point loads
• Difficulty maintaining straight grout joints

Flatness should be measured with an appropriate straightedge before the installation price and schedule are finalized. The contract should identify which trade is responsible for grinding high spots, patching low areas, installing a mortar bed, or applying an approved self-leveling underlayment.

Thin-set mortar should not be used as an improvised floor-flattening product. Mortar manufacturers generally design bonding mortars to attach tile, not to correct extensive surface deviations. Using thin-set beyond its approved thickness can result in uneven shrinkage and unreliable support.

Inspect the Surface Condition

The substrate must be clean, stable, and properly bonded. Planning should include checks for:

• Dust, paint, curing compounds, oil, and sealers
• Existing adhesive residue
• Weak or powdering concrete
• Active cracks
• Differential movement
• Moisture problems
• Loose existing tile
• Damaged backer board
• Inadequate wall framing
• Excessive substrate deflection

Surface preparation requirements depend on whether the project involves concrete, a mortar bed, cement backer board, an approved tile backer, an existing tile surface, or a wood-framed floor.

Verify Structural Support and Deflection

Large tile is not necessarily more likely to crack simply because it is large. The risk increases when the supporting assembly bends, moves, or provides incomplete support under a rigid tile body.

Framed floors must be evaluated as complete systems, including joist size, spacing, span, subfloor thickness, panel orientation, fastening, underlayment, live loads, dead loads, and anticipated concentrated loads.

Technical guidance for ceramic and porcelain systems commonly requires framed assemblies to limit deflection to L/360 under anticipated loads. Large or thin gauged panels may have additional manufacturer-specific requirements, and natural stone typically demands a stiffer assembly.

A tile installer cannot determine structural capacity by looking at the finished subfloor alone. An architect, structural engineer, experienced contractor, or other qualified professional should assess questionable framing, long spans, damaged joists, heavy partitions, exterior balconies, or unusually large panels.

Wall installations require similar planning. Framing must support the combined weight of the tile, mortar, backer, waterproofing, fixtures, cabinets, and other attached components. Large panels used on tall walls, ceilings, exterior façades, or overhead surfaces require project-specific engineering and manufacturer approval.

Plan Waterproofing, Drainage, and Moisture Management

Porcelain tile may have very low water absorption, but grout joints, penetrations, changes of plane, and the setting bed do not automatically form a waterproof assembly.

Before tile installation begins, determine:

• Where the waterproofing layer will be located
• Which membrane or backer system will be used
• How corners and penetrations will be treated
• How the waterproofing will connect to the drain
• Whether a flood test is required
• How benches, niches, curbs, and ledges will be sloped
• How exterior water will drain away from the building
• Whether vapor management is required

A shower should be waterproofed and tested before the tile covers the assembly. Large tile should never be used to conceal a moisture-damaged wall, leaking plumbing connection, improperly sloped shower base, or cracked exterior deck.

Shower-Floor Geometry

Large tile can be difficult to use on a compact shower floor with a centrally located drain. A central drain typically requires the floor to slope from several directions, while one large rigid tile remains planar.

Possible solutions include:

• Smaller coordinating mosaic tile on the shower floor
• A linear drain with a single-plane slope
• Professionally fabricated cuts around the drain
• A shower system specifically designed for the selected tile format

The drain type, tile size, shower dimensions, slope, waterproofing method, and slip-resistance classification should be selected together rather than independently.

Complete the Tile Layout Before Installation

Large-format tile leaves fewer opportunities to conceal layout errors. A difference of several inches can change a full tile into a narrow perimeter cut.

Measure Every Surface

Record the actual dimensions of:

• Each wall and floor section
• Doorways
• Windows
• Shower openings
• Niches
• Benches
• Columns
• Islands
• Floor drains
• Linear drains
• Floor outlets
• Heating vents
• Plumbing penetrations
• Cabinet bases
• Stair transitions

Rooms that appear rectangular may not be square. Walls may not be parallel, and cabinetry may not align with structural centerlines.

Use Actual Tile Dimensions

A nominal 24 × 48-inch tile may not measure exactly 24 × 48 inches. Grout-joint width must also be included in the installed module.

Layout calculations should use:

Actual tile size + planned grout joint = installed module

Create a scaled drawing or dry layout before mortar is mixed. Evaluate the surface from the main entry and prioritize important focal points such as:

• The center of a shower wall
• A freestanding bathtub
• A fireplace
• A kitchen island
• A corridor sightline
• A large window
• A lobby reception desk

Cuts should be balanced where possible, but blindly centering the pattern on every wall can create misaligned joints between connected surfaces. The project should establish a layout hierarchy.

For examples of how room dimensions and grout lines affect visual scale, see the guide to using large-format porcelain tile in small spaces.

Plan Offset Patterns and Grout-Joint Width

Avoid an Automatic 50% Offset

Rectangular tile can have a slight crown or curvature along its length. A 50% running-bond pattern places the high point near the center of one tile beside the lower ends of adjoining tiles, making lippage more visible.

Current industry guidance limits offset patterns to a maximum of 33% when the side being offset is greater than 15 inches, unless the tile manufacturer specifies otherwise. A larger offset should be evaluated through a mockup and approved by the owner and specifier.

Suitable alternatives include:

• Straight stack
• One-third offset
• Quarter offset
• Directional grid
• Random pattern that avoids problematic offsets
• Manufacturer-approved custom layouts

Do Not Specify “Credit-Card” Joints Without Testing

Rectified tile has mechanically finished edges and tighter dimensional tolerances, but rectification does not make the tile perfectly flat or identical in size.

For running-bond patterns using tile with a side greater than 15 inches, ANSI guidance calls for an average minimum joint of 1/8 inch for rectified tile and 3/16 inch for calibrated, non-rectified tile. The joint must be increased to accommodate actual edge warpage. No installation joint should be less than 1/16 inch.

Before approving the grout width:

1. Measure tiles from several cartons.
2. Check facial-size variation.
3. Inspect edge warpage.
4. Confirm the manufacturer’s minimum joint.
5. Construct a representative grouted mockup.
6. Review the result under the project’s actual lighting.

Tight joints make even small height differences easier to see. Wider joints create a more gradual visual transition between tile edges.

Select the Mortar and Coverage Method in Advance

A standard thin-set mortar should not automatically be assumed suitable for every large tile. The setting material must be approved for:

• The tile material and dimensions
• Tile weight
• Floor or wall placement
• Interior or exterior exposure
• Wet or dry conditions
• Substrate type
• Required mortar thickness
• Open time and working conditions
• Any membrane beneath the tile

Large-and-heavy-tile mortar is formulated to support larger pieces without excessive settling, but product limits vary. The selected mortar should comply with an appropriate ANSI A118 classification and the written recommendations of both the tile and installation-material manufacturers. Current ceramic tile installation requirements are contained in the ANSI A108/A118/A136.1 standards.

Mortar Coverage Must Be Verified

Industry standards require at least:

• 80% mortar coverage in dry interior areas
• 95% mortar coverage in wet or exterior areas
• 95% coverage for natural stone installations

Coverage refers to mortar contact with both the tile and the substrate. The requirement cannot be verified solely by looking at the exposed edges. Installers should periodically lift recently placed tiles to examine transfer and ridge collapse.

A skim coat applied to the back of the tile can improve contact and fill shallow surface texture, but back-buttering alone does not prove that the required coverage has been achieved.

Mortar ridges should be applied in a pattern that allows air to escape as the tile is embedded. Trowel size should be selected through coverage testing rather than from tile dimensions alone because tile-back profiles and substrate conditions vary.

A leveling-clip system can help control relative edge height while the mortar cures. It cannot flatten the substrate, eliminate tile warpage, or compensate for insufficient mortar coverage.

Plan Movement and Perimeter Joints

Tile, concrete, framing, glass, and adjacent materials expand, contract, shrink, and deflect at different rates. Rigid grout cannot safely absorb all that movement.

Movement accommodation must be planned at:

• Room perimeters
• Changes of plane
• Existing structural or expansion joints
• Changes in substrate
• Columns and restraining surfaces
• Large uninterrupted tile fields
• Areas exposed to sunlight
• Exterior installations
• Moisture-exposed interiors

TCNA EJ171 guidance places interior movement joints at maximum intervals of approximately 25 feet in each direction. Interior areas exposed to direct sunlight or moisture may require joints at no more than 12 feet, while exterior fields generally require intervals of 8 to 12 feet. Project conditions can require closer spacing.

Structural and expansion joints must continue through the tile assembly. They should not be bridged with rigid mortar or grout.

Movement-joint locations should appear on the drawings before the tile layout is approved. This allows the joints to align with tile modules, columns, doors, or architectural breaks rather than appearing as unplanned interruptions.

Coordinate Finished Height and Adjacent Materials

Large tile installation can change floor and wall thicknesses because the assembly may include:

• Subfloor repairs
• Self-leveling underlayment
• Backer board
• Uncoupling membrane
• Waterproofing membrane
• Heating system
• Large-and-heavy-tile mortar
• Tile
• Grout or sealant

Calculate the complete assembly thickness before doors, cabinets, appliances, drains, baseboards, glazing, and thresholds are installed.

Check:

• Door swing and undercut
• Dishwasher removal clearance
• Refrigerator height
• Toilet-flange position
• Shower-drain elevation
• Cabinet toe-kick height
• Stair riser consistency
• Exterior door thresholds
• Floor transitions
• Wall trim depth
• Electrical-box extensions

Transitions should be designed rather than corrected with an abrupt ramp after the tile has been installed.

Plan Cutting, Handling, Storage, and Site Access

Large tile requires more than a larger tile cutter. Depending on size and thickness, installation may require:

• Long rail cutters
• Wet saws with adequate capacity
• Diamond blades matched to porcelain
• Drill bits and hole saws
• Suction cups
• Carrying frames
• Work tables
• Edge-polishing tools
• Multiple trained installers
• Protected storage racks
• Safe lifting routes

Before delivery, confirm that crates or cartons can pass through gates, elevators, corridors, stairwells, and doorways. Large panels may need to be moved vertically, rotated in confined areas, or temporarily stored on purpose-built frames.

The cutting plan should identify outlets, plumbing openings, inside corners, and L-shaped cuts. Openings placed too close to tile edges can create weak sections that break during cutting, transport, installation, or later movement.

For additional planning around blades, cutouts, layout errors, and edge damage, review the most frequent porcelain tile cutting and installation mistakes.

Where Large Format Tile Works Best

Large-format tile can be effective in:

• Open-plan residential floors
• Hotel and office lobbies
• Retail interiors
• Kitchen floors
• Bathroom walls
• Shower walls
• Fireplace surrounds approved for tile
• Feature walls
• Countertop and furniture cladding
• Exterior façades using engineered systems
• Covered terraces
• Large commercial corridors

Its strongest applications are usually surfaces with enough uninterrupted area to display the scale of the material.

Where It May Not Be the Best Choice

Small shower floors with central drains: Multiple slopes may require difficult cuts and can create uneven edges. Mosaic tile or a linear-drain system is often more practical.

Severely uneven renovation surfaces: The cost of flattening may exceed the design benefit.

Structurally flexible floors: Tile should not be installed until the assembly meets the required stiffness.

Tight rooms with many obstacles: Numerous toilets, columns, niches, outlets, or floor penetrations can generate high cutting waste.

DIY installations involving porcelain panels: Large gauged panels are vulnerable during handling and require specialized tools, working methods, and trained teams.

Wet floors without a suitable use classification: Large format does not determine slip safety. The finish must be classified for the actual exposure.

Exterior or overhead applications without engineering: Wind loads, thermal cycling, moisture, attachment, and public safety require project-specific design.

Large Format Tile Ideas by Design Style

Minimalist and Contemporary

Use rectified 24 × 48-inch or larger tile in a straight stack with a grout color close to the tile body. Align wall and floor joints where technically practical.

White, greige, mineral gray, charcoal, and pale stone finishes create a quiet field. The design depends on accurate cuts and controlled transitions because minimal interiors make imperfections more visible.

Stone-Look Luxury

Select marble-, limestone-, travertine-, or onyx-look porcelain with several unique graphic faces. Plan vein direction before installation and review adjacent pieces from normal viewing distance.

Book-matched or continuous-vein effects should be mapped digitally or dry-laid. Randomly rotating strongly directional tiles can interrupt the intended stone appearance.

Industrial and Architectural

Concrete- or metal-look large tile works well in lofts, commercial interiors, kitchens, and contemporary bathrooms. Matte finishes reduce reflection and reinforce the monolithic appearance.

In wet or high-traffic environments, confirm the ANSI A326.3 product-use classification rather than selecting a smooth finish only for its appearance.

Warm Organic Modern

Beige limestone effects, warm travertine graphics, muted clay colors, and soft wood-look porcelain can create continuity without appearing cold.

Combine large tile with natural wood, limewash-inspired paint, brushed metal, or textured fabric. A warm gray or beige grout usually creates a softer transition than a strong contrasting joint.

Indoor–Outdoor Continuity

Using visually coordinated tile inside and outside can extend sightlines through large doors. The exterior product may need a different thickness, surface texture, slip classification, installation method, and drainage system even when its color matches the interior tile.

Do not assume that an interior polished tile is suitable outside. Exterior exposure requires manufacturer approval for climate, water, freeze-thaw conditions, and the specific support system.

Practical Large Format Tile Selection Checklist

Product Specifications

• Confirm whether the product complies with ANSI A137.1 or ANSI A137.3.
• Record the exact dimensions and thickness.
• Confirm whether it is rectified or calibrated.
• Verify porcelain water absorption of 0.5% or less when required.
• Check floor, wall, exterior, wet-area, and freeze-thaw suitability.
• Review the shade-variation rating.
• Ask how many unique graphic faces are included.
• Confirm the recommended grout-joint width.
• Obtain the tile manufacturer’s installation instructions.

Slip Resistance

ANSI A326.3 classifies hard-surface flooring into Interior Dry, Interior Wet, Interior Wet Plus, Exterior Wet, and Oils/Greases categories. Interior Wet products may qualify through a wet DCOF of at least 0.42 or through a manufacturer declaration. DCOF should not be treated as a complete prediction of whether a person will slip because contaminants, drainage, footwear, slope, maintenance, and human behavior also affect risk.

Choose the product-use classification for the real conditions, especially in:

• Bathrooms
• Entryways
• Commercial kitchens
• Pool areas
• Exterior terraces
• Restaurants
• Locker rooms

Installation System

• Identify the substrate.
• Verify structural capacity and deflection.
• Measure substrate flatness.
• Select an approved patch or leveling product.
• Specify the waterproofing or crack-isolation system.
• Select compatible large-and-heavy-tile mortar.
• Establish the trowel and coverage-verification method.
• Plan perimeter and movement joints.
• Confirm grout and flexible sealant types.

Layout

• Prepare a dimensioned tile-layout drawing.
• Use actual tile dimensions.
• Balance visible cuts.
• Avoid unnecessary narrow strips.
• Determine vein and pattern direction.
• Limit offsets according to manufacturer and ANSI guidance.
• Coordinate joints through connected rooms.
• Plan drain, niche, outlet, and penetration cuts.
• Approve a grouted mockup.

Logistics

• Measure delivery and handling routes.
• Confirm elevator and stair access.
• Provide protected indoor storage.
• Check whether lifting frames or suction equipment are needed.
• Allow adequate working space.
• Protect finished tile from other trades.
• Retain spare material from the original production lot.

Budget

Current U.S. cost guidance places large-format tile installation at approximately $18–$45 per square foot, depending on material, format, substrate preparation, cutting complexity, and labor conditions. Mid-range projects are frequently reported around $32–$34 per square foot.

The budget should separately include:

• Tile and freight
• Delivery equipment
• Demolition
• Substrate repair
• Leveling
• Waterproofing
• Crack isolation
• Mortar
• Grout and sealant
• Cutting and drilling
• Edge profiles
• Movement joints
• Labor
• Waste allowance
• Protection after installation

Large tile may require fewer individual pieces, but professional handling, surface preparation, and specialized cutting can make installation more expensive than standard-format tile.

Large Format Tile Compared With Alternative Surfaces

The following ranges are broad U.S. planning figures. Regional labor, project size, demolition, surface preparation, access, pattern, waterproofing, and material grade can move actual quotations outside these ranges. Current published cost guides report large-format tile at roughly $18–$45 per square foot installed, standard porcelain around $8–$44, ceramic around $12–$45, natural stone and travertine around $5–$47, vinyl at approximately $3–$20 depending on product and installation, and polished concrete around $2–$16.

Material/Option	Appearance	Durability with data	Maintenance	Cost range	Best use case
Large-format porcelain tile	Continuous stone, concrete, wood, terrazzo, or solid-color look with fewer joints	Porcelain water absorption is 0.5% or less under ASTM C373; installed performance depends heavily on substrate and mortar coverage	Low tile-body maintenance; fewer but still necessary grout and movement joints	$18–$45/sq. ft. installed	Premium floors, shower walls, feature walls, lobbies, and open-plan spaces
Standard-format porcelain tile	More visible grid; broad range of colors and patterns	Same porcelain absorption criterion; smaller pieces are generally easier to fit around irregular areas	More grout joints than large format	$8–$44/sq. ft. installed	Complex rooms, moderate budgets, and projects with many cuts
Ceramic tile	Wide decorative range; commonly available in smaller wall and floor formats	Non-porcelain ceramic absorbs more than 0.5%; floor suitability must be verified	Glazed surfaces are easy to clean; more joints in small formats	$12–$45/sq. ft. installed	Backsplashes, walls, and budget-conscious interior floors using floor-rated products
Natural stone tile	Unique veining, fossils, tonal variation, and geological character	No universal absorption or abrasion figure; performance varies substantially by stone	May require sealing and stone-specific cleaners	$5–$47/sq. ft. installed	Projects where authentic natural variation is more important than uniformity
Luxury vinyl tile	Printed stone or wood effect with softer visual depth	Water-resistant products are available, but performance depends on wear layer, seams, substrate, and product construction	Simple routine cleaning; vulnerable to heat, cuts, and indentation	$3–$20/sq. ft. installed	Fast renovations, lower budgets, and spaces needing a softer floor
Polished concrete	Seamless industrial or contemporary surface	Performance depends on slab quality; cracking may remain visible and repairs can be difficult to conceal	Periodic cleaning and possible resealing; no grout	$2–$16/sq. ft.	Existing sound slabs, commercial interiors, and industrial-modern designs

Standard porcelain is often the better choice in small rooms with many penetrations. Ceramic can be better for decorative walls and lower material budgets. Natural stone is better when genuine geological variation is the main objective. Luxury vinyl may be preferable when installation speed, softness, or initial cost matters most. Polished concrete is more practical where a suitable structural slab already exists.

Maintenance and Expected Longevity

Large-format porcelain usually requires the same surface care as standard porcelain, but reduced grout density does not eliminate joint maintenance.

For routine cleaning:

• Remove grit that can scratch polished surfaces.
• Use a neutral cleaner approved for the tile and grout.
• Avoid oily soaps and wax-based products that leave residue.
• Rinse away cleaning solution completely.
• Clean spills before they dry.
• Use non-abrasive pads on polished or specialty finishes.
• Follow manufacturer instructions for metallic, textured, or decorated surfaces.

Inspect flexible joints at perimeters, changes of plane, countertops, shower corners, and other transitions. Replace failed sealant before water or debris enters the joint.

Cementitious grout may require sealing when specified. Epoxy, premixed, and high-performance cement grouts have different maintenance requirements, so treatment should be based on the exact product rather than a general rule.

Check exterior installations periodically for:

• Open joints
• Cracked sealant
• Drainage blockage
• Loose tiles
• Efflorescence
• Freeze-thaw damage
• Movement at thresholds
• Deteriorated perimeter joints

The industry EPD’s 75-year reference service life assumes an appropriate building and installation system. Tile can remain serviceable for decades, but a poorly prepared substrate can fail much earlier than the tile body.

A more detailed maintenance schedule is available in Solidshape’s guide to extending porcelain tile lifespan.

Common Large Format Tile Planning Mistakes

Ordering Tile Before Inspecting the Substrate

The tile size may be technically unsuitable or unexpectedly expensive once flattening, reinforcement, or waterproofing requirements are discovered.

Confusing Flatness With Level

Trying to correct a significantly uneven floor during tile setting makes mortar thickness and coverage difficult to control.

Treating Thin-Set as a Leveling Compound

Bonding mortar is not a substitute for an approved patching product, mortar bed, or self-leveling underlayment.

Selecting a 50% Offset Automatically

Long rectangular tile can develop more visible lippage when its center is aligned with adjoining tile ends. A one-third offset or straight stack is usually safer unless the manufacturer approves another pattern.

Specifying Joints That Are Too Narrow

A narrow joint cannot conceal tile-size variation or warpage. Rectified edges do not guarantee a jointless installation.

Assuming Leveling Clips Fix the Floor

Clips can help align adjoining edges but cannot correct substrate depressions or create missing mortar support.

Failing to Check Mortar Coverage

A floor can look visually acceptable while containing extensive unsupported areas beneath the tile.

Ignoring Movement Joints

Rigidly grouting perimeters, structural joints, or changes of plane can contribute to cracking, debonding, or tenting.

Choosing Finish by Appearance Alone

A polished tile may not have the required product-use classification for a wet or contaminated floor.

Planning the Drain After the Tile

Drain position, slope geometry, tile size, waterproofing, and cut pattern must be coordinated before construction.

Forgetting Finished Floor Height

Additional preparation layers can interfere with doors, appliances, plumbing fixtures, and transitions.

Underestimating Handling Requirements

A tile that fits the room may not fit through the building or be safely lifted by one installer.

Skipping the Mockup

Photographs cannot demonstrate actual lippage, grout width, shade variation, lighting reflection, or vein alignment.

Is Large Format Tile Worth It?

Large format tile is worth the investment when visual continuity, low tile absorption, long material service potential, and fewer grout joints justify the additional planning and installation requirements.

The decision should not be based only on the cost per square foot of tile. A technically complete budget must include substrate correction, waterproofing, crack isolation, special mortar, cutting, handling, movement joints, and qualified labor. Current U.S. estimates of approximately $18–$45 per square foot installed demonstrate why preparation should be priced before the material order is placed.

Large tile offers particularly strong value when:

• The room has broad uninterrupted surfaces.
• The substrate can be brought within tolerance.
• The design benefits from continuous graphics.
• Fewer grout joints are a meaningful maintenance advantage.
• The owner intends to retain the finish for many years.
• Qualified installers and proper equipment are available.

It may offer poor value when the project requires extensive structural correction, consists mostly of narrow or irregular surfaces, or uses a costly format that will be heavily cut around numerous obstacles.

There is no reliable universal percentage showing that large-format tile alone increases resale value. Its financial value is better understood as part of a durable, well-detailed kitchen, bathroom, commercial interior, or whole-floor renovation. Good installation protects that investment; tile size by itself does not.

Frequently Asked Questions

What size is considered large format tile?

For installation planning, tile with an edge measuring 15 inches or more is commonly treated as large format because it triggers stricter ANSI substrate-flatness requirements. Retail terminology may begin at sizes larger than 12 × 12 inches.

Does large format tile need a perfectly level floor?

It needs a sufficiently flat substrate, which is not the same as level. For tile with an edge of 15 inches or longer, the common ANSI tolerance is no more than 1/8 inch variation over 10 feet.

Can large tile be installed over a wood subfloor?

It can be installed over an appropriately designed wood-framed assembly, but the joists, subfloor, underlayment, fastening, deflection, moisture conditions, and tile-system requirements must all be verified. Tile should not be bonded directly to an unsuitable or flexible wood surface.

Is back-buttering required for large format tile?

Applying a skim coat to the tile back is widely recommended to improve contact, especially with large or textured tile. However, back-buttering does not replace the requirement to achieve at least 80% mortar coverage in dry areas and 95% in wet or exterior areas.

What mortar should be used for 24 × 48-inch tile?

Use a manufacturer-approved large-and-heavy-tile mortar that is compatible with the substrate, tile, membrane, location, and required bed thickness. Product selection should be based on technical data rather than tile size alone.

What grout-joint width should be used?

For running-bond patterns with tile longer than 15 inches, ANSI guidance calls for an average minimum of 1/8 inch for rectified tile and 3/16 inch for calibrated tile, plus additional width needed to accommodate actual warpage. Manufacturer instructions can require a wider joint.

Can 24 × 48-inch tile be installed in a 50% brick pattern?

A 50% offset can make warpage-related lippage more visible. Industry guidance generally limits the offset to 33% when the side being offset exceeds 15 inches unless the manufacturer specifies otherwise or a larger offset is approved through a mockup.

Are leveling clips necessary?

They are not a substitute for correct substrate preparation, but they can help control relative edge alignment while mortar cures. Their use should not reduce mortar coverage or pull tiles away from the setting bed.

Can large format tile be used on shower floors?

It can be used when the drain and slope geometry are designed for it, often with a linear drain and single-plane slope. Smaller mosaics are usually easier around a central drain and provide more grout joints that may contribute to underfoot texture.

Is large format porcelain waterproof?

Porcelain absorbs 0.5% water or less under ASTM C373, but a tiled shower, exterior deck, or wet room is waterproof only when the complete substrate, membrane, drain, joints, transitions, and penetrations form an approved system.

How much mortar coverage is required?

At least 80% contact is required in dry interior areas and 95% in wet or exterior areas. Natural stone requires at least 95% coverage in all applications.

How many movement joints are needed?

General TCNA guidance places interior movement joints at maximum intervals of approximately 25 feet. Areas exposed to direct sunlight or moisture may require 12-foot maximum spacing, while exterior installations commonly require joints every 8 to 12 feet. The final design must reflect project conditions.

Does large format tile make a small room look larger?

It can reduce the visual interruption created by grout joints, but the effect depends on layout and cuts. A tile that leaves narrow perimeter strips or conflicts with fixtures may make the room appear less balanced.

How much does large format tile installation cost?

Current U.S. planning estimates generally range from approximately $18 to $45 per square foot installed. Substrate repair, waterproofing, access, tile thickness, cutting complexity, patterns, and regional labor can substantially change the final quotation.

Should large format tile be professionally installed?

Professional installation is strongly recommended, particularly for 24 × 48-inch and larger pieces, gauged porcelain panels, wet rooms, exterior work, heated floors, complex layouts, and framed-floor assemblies. Large tile requires specialized knowledge of flatness, coverage, movement, handling, cutting, and waterproofing.
