A successful mosaic tile shower floor must balance traction, drainage, water resistance, grout maintenance, material compatibility, and visual scale. The safest-looking mosaic is not necessarily the safest product, and the most attractive pattern can fail if its backing, adhesive, grout, or waterproofing system is unsuitable for continuous wet exposure.

Drainage should be planned before the tile pattern. A finished shower floor generally needs to slope uniformly toward the drain by at least 1/4 inch per foot and no more than 1/2 inch per foot. Small mosaic pieces are particularly useful because they can follow this multidirectional slope more easily than rigid, large-format tiles.

What Is a Mosaic Tile Shower Floor?

A mosaic tile shower floor is a tiled shower base made from numerous small pieces of ceramic, porcelain, glass, natural stone, or another approved material. The individual pieces are normally supplied on mesh-backed, dot-mounted, or face-mounted sheets so installers can place a larger section while preserving the mosaic pattern.

Mosaics may use squares, hexagons, penny rounds, basketweave patterns, irregular stones, arabesques, or custom waterjet shapes. Individual pieces commonly measure approximately 1 to 2 inches across, although “mosaic” describes the composition and scale rather than one mandatory dimension.

The small format is especially compatible with center-drain showers. A center drain normally creates several intersecting slope planes, and small pieces can follow these changes without excessive lippage or awkward cuts.

A linear drain can create a single sloping plane, which means both mosaics and certain larger tiles may be technically possible.

Mosaic tile itself is not the shower’s waterproof layer. Tile, grout, mortar, waterproofing membrane, drain connection, substrate, sealant joints, and slope must work as a coordinated assembly.

Surface-applied membranes are waterproofing layers installed on the shower base or backer board before the finish material is applied.

Homeowners and designers can explore different materials, shapes, colors, and mounted patterns, but every shortlisted product should still be checked for explicit shower-floor approval.

Why Is Mosaic Tile Popular for Shower Floors?

Its popularity is both aesthetic and technical.

First, mosaics create more joints than large tile. Those joints interrupt the surface and can contribute texture underfoot. Small tile sizes can also aid drainage and make it easier to form the required slope.

However, grout joints should be treated as one component of traction, not as permission to use a highly polished or unrated tile.

Second, mosaics allow a shower floor to become a distinct design element. A restrained hexagon can support a minimalist bathroom, while a basketweave marble pattern can introduce traditional detail without covering every wall in ornamental tile.

Third, small pieces work around round drains, square drain covers, curved thresholds, and irregular shower footprints more naturally than large units.

Benefits of Mosaic Tile on a Shower Floor

It Conforms to Compound Slopes

A conventional center-drain shower often slopes from four directions. Large rigid tiles can bridge these slope changes, creating lippage, uneven joints, or areas where water remains after use.

Small mosaic pieces divide the surface into flexible sections that follow the shape of the shower pan.

This does not remove the need for a properly constructed base. The finished surface must still maintain a uniform fall toward the drain within the applicable slope limits.

More Joints Can Contribute to Wet-Foot Traction

The number, depth, and texture of grout joints can interrupt a smooth tile surface and give bare feet more points of contact.

Tile size, drainage, surface structure, and the number of grout joints can all affect suitability in wet applications.

Nevertheless, more grout does not automatically make every mosaic safe. A polished glass or marble mosaic can remain uncomfortable or slippery when contaminated by soap, shampoo, or body oils.

The manufacturer must approve the complete product, including its finish, for shower-floor use.

Porcelain Mosaics Offer Very Low Water Absorption

Porcelain is generally classified as ceramic tile with water absorption of 0.5% or less. This makes properly classified porcelain mosaic a practical starting point for frequently wet residential and commercial showers.

Low tile absorption does not make the complete shower waterproof. However, it reduces the amount of water absorbed by the tile body and simplifies routine maintenance compared with many porous stones.

Mosaics Provide High Design Flexibility

Manufacturers can combine several colors or materials within one sheet, allowing designers to create borders, gradients, symbols, medallions, and transitions.

Mosaic scale can also be repeated in a niche, vanity backsplash, or accent band to connect the shower floor with the wider bathroom.

Damaged Areas May Be Repaired Locally

When the original product remains available, an installer may be able to remove and replace individual pieces rather than an entire large tile.

Local repair is still delicate because the waterproofing layer beneath the tile must not be punctured.

Ceramic Mosaics Can Have a Long Service Life

Properly specified and installed ceramic tile can remain functional for several decades. Some long-term building assessments use a reference service life of up to 75 years for correctly installed ceramic tile systems.

That figure is not a guarantee that every shower installation will last 75 years. Waterproofing quality, movement, grout care, drain construction, and workmanship remain decisive.

Where Should Mosaic Shower Floor Tile Be Used?

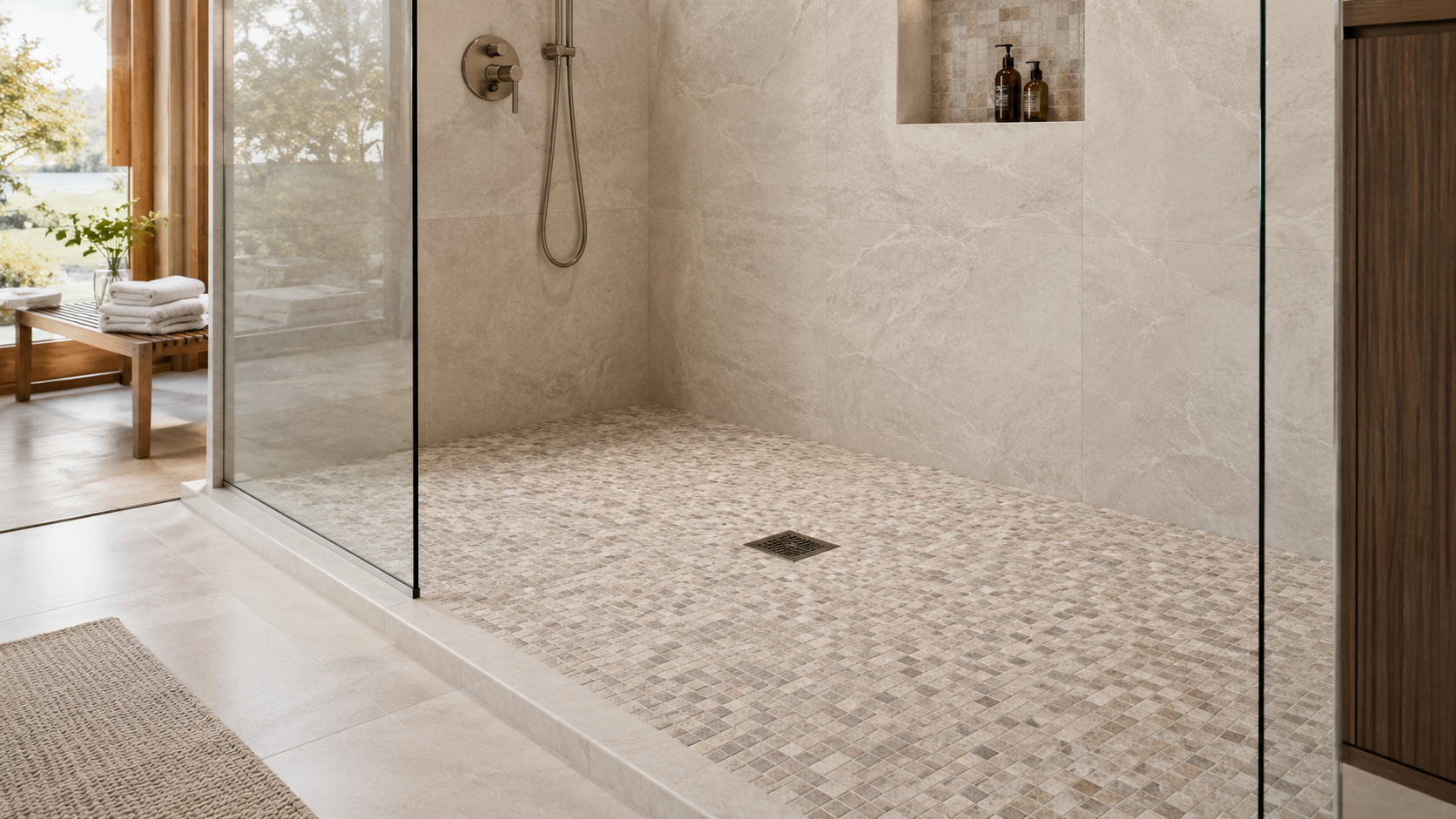

Center-Drain Showers

This is one of the strongest applications for small mosaics. The pieces can follow multiple slope planes while maintaining relatively consistent joints around the drain.

Walk-In and Curbless Showers

Mosaics can continue through a curbless entrance and visually connect the wet zone with the bathroom.

However, curbless detailing affects floor elevation, waterproofing, drainage, accessibility, and sometimes the structure below.

It should be designed by an experienced tile contractor, architect, or bathroom specialist rather than improvised during installation.

Compact Showers

Small mosaics suit tight enclosures because their scale is proportionate to the floor and they require fewer visually disruptive cuts around corners and drains.

Custom or Irregular Shower Bases

Curved walls, angled thresholds, and non-standard footprints are easier to resolve with small pieces than with large rectangular units.

Hotel, Spa, and Premium Residential Bathrooms

Mosaics can provide detailed patterning and a handcrafted appearance in relatively small areas.

For commercial use, the specification should address cleaning chemicals, use frequency, wet-area classification, and maintenance responsibility.

Where Mosaic Tile May Not Be the Best Choice

Mosaic is less suitable when the owner wants the fewest possible grout joints.

Penny rounds and miniature mosaics have a high grout-to-tile ratio, so cleaning can take longer than it does on a large, smooth surface.

It is also a poor choice when:

• The product is marked for walls only.

• The surface is highly polished and has no shower-floor approval.

• The mesh or mounting adhesive is not rated for submerged or continuously wet conditions.

• The natural stone is incompatible with the planned cleaners.

• Sheet spacing is visibly inconsistent.

• The installer is unfamiliar with mosaic layout and sheet blending.

• The selected foam shower tray imposes a minimum tile-size requirement that the mosaic does not satisfy.

There is no single universal requirement governing every adhesive and mesh used on the back of mosaic sheets.

Some mounting glues can be sensitive to moisture or alkalinity, so written confirmation from the mosaic manufacturer may be necessary.

Mosaic Shower Floor Design Styles

Modern Porcelain Hexagons

Small matte porcelain hexagons create a clear geometric rhythm without making the shower feel heavily decorated.

Warm gray, limestone-look, charcoal, and muted green work especially well with large-format wall tile.

Using grout close to the tile color softens the honeycomb effect.

A contrasting grout turns every hexagon into a visible graphic element, which can work in larger showers but may feel busy in a compact enclosure.

Classic Penny Rounds

Penny tile has a softer visual character than square or hexagonal mosaic.

White penny rounds with medium-gray grout suit vintage and transitional bathrooms, while dark blue, burgundy, or green creates a more decorative floor.

The trade-off is maintenance. Round pieces leave substantial grout area between them, and poor sheet alignment can create visible circular or flower-shaped gaps.

Dry-laying several sheets before installation is essential.

Black-and-White Octagon or Basketweave Patterns

Octagon-and-dot, basketweave, and pinwheel patterns work with traditional bathrooms, geometric interiors, and restored properties.

These patterns can be paired with rectangular wall tile, marble thresholds, and polished metal fixtures.

Because the floor is already patterned, wall surfaces generally benefit from a simpler format and limited color variation.

Natural Stone Mosaics

Honed marble, travertine, and limestone mosaics create subtle variation that printed tile does not reproduce exactly.

The effect is premium, but the selection process must consider absorption, mineral content, finish, sealing, and chemical sensitivity.

Calcite-based stones such as marble and limestone react with acidic substances.

Vinegar, lemon-based cleaners, and aggressive descalers may etch the surface even when the stone is sealed.

Sealer reduces absorption. It does not make an acid-sensitive mineral chemically resistant.

Glass Mosaics

Glass can add color depth and light reflection, particularly in small showers.

Only glass tile specifically approved for floors and wet barefoot areas should be considered.

Back-mounted glass requires particular attention. Manufacturers should clearly state where the mounting system is suitable.

Minimum shear-bond benchmarks may include approximately 150 psi after dry conditioning and 100 psi after a conditioning cycle that includes water immersion.

Smooth transparent glass can reveal mortar ridges, mesh, inconsistent adhesive coverage, or color variation behind the tile.

A compatible light-colored setting material and a highly skilled installer are usually necessary.

Coordinated Floor, Niche, and Accent Details

Repeating the floor mosaic inside a shower niche or as a narrow wall detail creates continuity without covering every surface in small tile.

This approach also controls labor costs because the most detailed material is restricted to focal zones.

The repetition should be intentional.

Using the same decorative mosaic on the floor, every wall, ceiling, and niche can make grout lines dominate the room.

Practical Mosaic Tile Shower Floor Selection Checklist

1. Confirm the Application in Writing

The product data sheet should explicitly allow shower floors, wet floors, or barefoot wet areas.

“Suitable for bathrooms” may refer only to walls or dry bathroom floors.

2. Evaluate Slip Resistance Correctly

Do not rely only on the phrase “non-slip.”

Request the manufacturer’s test method, declared use category, and application recommendation.

A wet DCOF of 0.42 is commonly referenced for level interior surfaces expected to become wet.

However, this value is not a universal safety threshold for shower floors.

Shower suitability depends on additional factors such as:

• Drainage

• Tile size

• Grout joints

• Surface structure

• Barefoot use

• Cleaning products

• Soap contamination

• Slope

3. Match the Tile Format to the Drain

A small mosaic is normally easiest around a center drain and compound slope.

A linear drain creates a single slope plane and can accommodate larger tile under an appropriately designed system.

Determine the drain location and grate dimensions before finalizing the mosaic pattern.

Poor coordination can leave narrow cuts or disrupt a geometric layout.

4. Check Water Absorption and Material Type

For porcelain, verify water absorption of 0.5% or less using recognized product data.

For non-porcelain ceramic, glass, and stone, use the manufacturer’s technical information instead of judging density by appearance.

5. Inspect the Mounting System

Turn a sample sheet over.

Excessive mesh or glue can reduce direct contact between mortar and tile.

Ask whether the backing is suitable for cementitious mortar, epoxy adhesive, and prolonged wet exposure.

6. Review Sheet Consistency

Dry-lay at least four sheets together under the project lighting.

Look for:

• Wider gaps where sheets meet

• Repeating sheet outlines

• Misaligned rows

• Uneven color blending

• Pieces that detach from the backing

• Inconsistent joints within each sheet

A skilled installer often removes and repositions individual pieces to disguise sheet boundaries.

7. Select a Compatible Grout

Cementitious grout is familiar and widely available, but some products require a penetrating sealer and more routine stain management.

High-performance cement grout may provide improved density and color consistency.

Epoxy grout has low absorption and strong stain resistance, making it useful for heavily used showers.

It costs more, has a demanding installation process, and must be confirmed as compatible with the selected tile, especially translucent glass or moisture-sensitive stone.

8. Coordinate Tile Thickness and Drain Height

Mosaic sheets may be thinner than adjacent wall or bathroom-floor tile.

The installer must account for mortar thickness, drain adjustment, and transitions so that the finished surface drains correctly without creating sharp lips.

9. Include Waterproofing and Flood Testing in the Specification

Waterproofing should be continuous at the floor, walls, curb, corners, penetrations, and drain connection.

The completed shower base should be flood-tested before tile conceals the system whenever required by the project specification or waterproofing instructions.

10. Budget for Specialist Labor

Mosaics are sold on sheets, but they are not automatically quick to install.

Pattern alignment, mortar control, drain cuts, and adjustment of individual pieces can make labor more expensive than the small floor area suggests.

Mosaic Shower Flooring Compared with Other Options

The following ranges are broad 2026 U.S. indicators.

Project location, substrate repair, waterproofing, drain work, pattern complexity, and premium materials can change the final price substantially.

Mosaic installation may cost approximately $17–$47 per square foot, ceramic shower tile $10–$25, marble $20–$65, limestone $25–$60, glass $35–$60, and large-format tile approximately $18–$45 per square foot.

A prefabricated shower base is another realistic alternative.

It lacks the customization of mosaic but eliminates most floor grout and can simplify installation.

A basic installed shower base may cost approximately $773–$1,303, although complete replacement projects can cost considerably more.

Mosaic Shower Floor Maintenance and Longevity

A mosaic shower floor should be maintained as a system rather than as tile alone.

After use, remove standing water where practical and ventilate the bathroom.

Drying reduces the time that grout, sealant, and mineral deposits remain wet.

For routine cleaning, use warm water and a cleaner compatible with the tile and grout.

A soft nylon brush can reach the mosaic joints without scratching most finishes.

Abrasive powders, stiff metal brushes, and acidic household mixtures should not be treated as universal shower cleaners.

Natural stone normally requires a pH-neutral stone cleaner.

Acidic cleaners can etch marble and limestone.

Glass may show hard-water deposits more readily, while heavily textured tile can retain soap residue in recessed areas.

Cementitious grout and absorbent stone should be tested periodically to determine whether resealing is necessary.

Follow the sealer and grout instructions rather than automatically applying new sealer every year.

Epoxy grout generally does not require a penetrating sealer, although it still requires cleaning.

Inspect the shower periodically for:

• Cracked or missing grout

• Loose mosaic pieces

• Deteriorated perimeter sealant

• Persistent darkening that does not dry

• Standing water

• Drain blockages

• Musty odors

• Efflorescence or mineral deposits

Properly installed ceramic and porcelain tile can remain serviceable for decades.

A shower may fail much earlier, however, if the drain connection, membrane, substrate, or movement detailing is defective.

Common Mosaic Shower Floor Mistakes

Treating a 0.42 DCOF Value as a Shower Guarantee

The frequently quoted 0.42 criterion relates to certain level interior wet surfaces under specific test conditions.

It is not a single universal limit that makes every shower floor safe.

Soap, slope, drainage, footwear, bare feet, surface structure, and maintenance all change real-world performance.

Choosing a Wall-Only Mosaic

A wall mosaic may have a glossy finish, delicate surface, or mounting system that was never designed for floor loading and constant wetting.

Assuming More Grout Fixes a Polished Surface

Grout can contribute texture, but it cannot reliably compensate for a very smooth, polished, or inappropriate tile.

Ignoring the Mesh Adhesive

Moisture-sensitive sheet glue may weaken after installation.

The mortar should achieve adequate contact with the tile rather than bonding mainly to a questionable backing layer.

Using Premixed Mastic on the Shower Floor

Premixed mastic should not be used on shower floors or floors subject to soaking, saturation, or frequent moisture exposure.

Selecting the Pattern Before the Drain

The drain influences slope direction, tile cuts, and pattern centering.

Moving it after tile selection may leave awkward fragments or disturb a symmetrical design.

Failing to Dry-Lay Multiple Sheets

A single sample does not reveal inconsistent inter-sheet spacing.

Several sheets should be assembled before installation to identify visible seams.

Pressing Mosaic Too Deeply into Mortar

Excess mortar can rise into the joints, leaving insufficient depth for grout and creating visible color differences.

Too little contact can cause loose pieces.

Proper trowel selection and consistent embedding pressure are specialist installation tasks.

Grouting Changes of Plane as Though They Were Rigid Field Joints

Transitions between the floor, walls, curb, and bench experience movement.

The complete installation should use flexible sealant and allow appropriate movement at these transitions.

Believing Tile and Grout Are the Waterproofing

A visually perfect floor can still leak when the underlying membrane or drain connection is defective.

Waterproofing must be completed and tested before the mosaic is installed.

Is a Mosaic Tile Shower Floor Worth It?

Mosaic is usually worth the investment when the shower has a center drain, an irregular footprint, or a design that benefits from small-scale pattern.

Porcelain mosaics are particularly strong value options because they combine low water absorption with broad design availability.

Mosaic becomes less attractive when the owner’s primary goal is minimal maintenance.

Small penny rounds, elaborate natural stone patterns, and textured pebbles may require more cleaning and specialist labor than a larger porcelain tile used with a linear drain.

Cost should be assessed across the complete shower assembly.

Saving a few dollars per square foot on tile does not create value if the mounting system is unsuitable, the installer cannot align the sheets, or the waterproofing must later be replaced.

Conversely, a premium mosaic used only on the shower floor may provide a strong design focal point without the expense of covering every wall.

For most frequently used residential showers, a matte or subtly textured, floor-rated porcelain mosaic with a well-matched grout color offers the most balanced combination of drainage compatibility, durability, appearance, and maintenance.

Natural stone is worthwhile when authentic variation is more important than low maintenance.

Glass is worthwhile when color and luminosity are priorities and a technically appropriate floor-rated product is available.

A prefabricated base or large-format porcelain with a linear drain is often the better choice when easy cleaning and fewer joints outrank decorative detail.

Frequently Asked Questions

What Is the Best Mosaic Material for a Shower Floor?

Floor-rated porcelain mosaic is generally the most practical choice.

Porcelain has water absorption of 0.5% or less and is available in matte and textured finishes.

The exact product must still be approved for shower-floor use.

What Mosaic Tile Size Works Best Around a Center Drain?

Pieces of approximately 1 to 2 inches are commonly convenient because they can follow compound slopes and fit around the drain.

There is no universal maximum size.

Drain design, slope geometry, and manufacturer instructions determine suitability.

Is Mosaic Tile Less Slippery Than Large Tile?

It can provide more traction because the additional grout joints interrupt the surface.

However, tile finish and wet-area suitability are more important than size alone.

A polished mosaic can be less appropriate than a textured larger tile.

Does Shower Floor Tile Need a DCOF of at Least 0.42?

A 0.42 wet DCOF is a reference criterion for certain level interior wet surfaces, not a universal shower-floor safety threshold.

Shower floors should be evaluated using additional factors, including drainage, surface structure, tile size, grout joints, and barefoot use.

Does Porcelain Mosaic Need to Be Sealed?

The porcelain tile body generally does not need a penetrating sealer.

Cementitious grout may require one, depending on the product.

Some unglazed or textured surfaces may benefit from temporary grout-release treatment during installation.

Is Epoxy Grout Better for a Mosaic Shower Floor?

Epoxy grout offers low absorption and strong stain resistance, which can be valuable where mosaics create many joints.

It is more expensive and difficult to install, and compatibility with natural stone or transparent glass should be confirmed first.

Can Glass Mosaic Be Installed on a Shower Floor?

Yes, but only when the glass manufacturer specifically approves the tile, finish, and mounting system for wet floors or shower floors.

Wall-rated decorative glass should not automatically be moved to the floor.

Can Marble Mosaic Be Used on a Shower Floor?

Yes, provided the stone, finish, backing, setting materials, and cleaning plan are appropriate.

Marble can darken when wet and is vulnerable to acidic cleaners, so it needs more careful maintenance than porcelain.

Are Mosaic Tile and Grout Waterproof?

No.

Tile and grout are finish materials.

The waterproof membrane and its connection to the drain form the primary water-management system.

How Often Should Mosaic Shower Grout Be Sealed?

There is no universal interval.

Follow the grout and sealer instructions and test whether water is being absorbed.

Epoxy grout usually does not require penetrating sealer, while cementitious grout and natural stone may need periodic treatment.

Can Mosaic Shower Floors Be Installed as a DIY Project?

Experienced homeowners may be able to complete cosmetic tile work, but a custom shower floor is a moisture-sensitive assembly involving slope, waterproofing, drain integration, and flood testing.

Professional installation is the safer option, particularly for curbless showers, natural stone, glass mosaics, and structural modifications.
