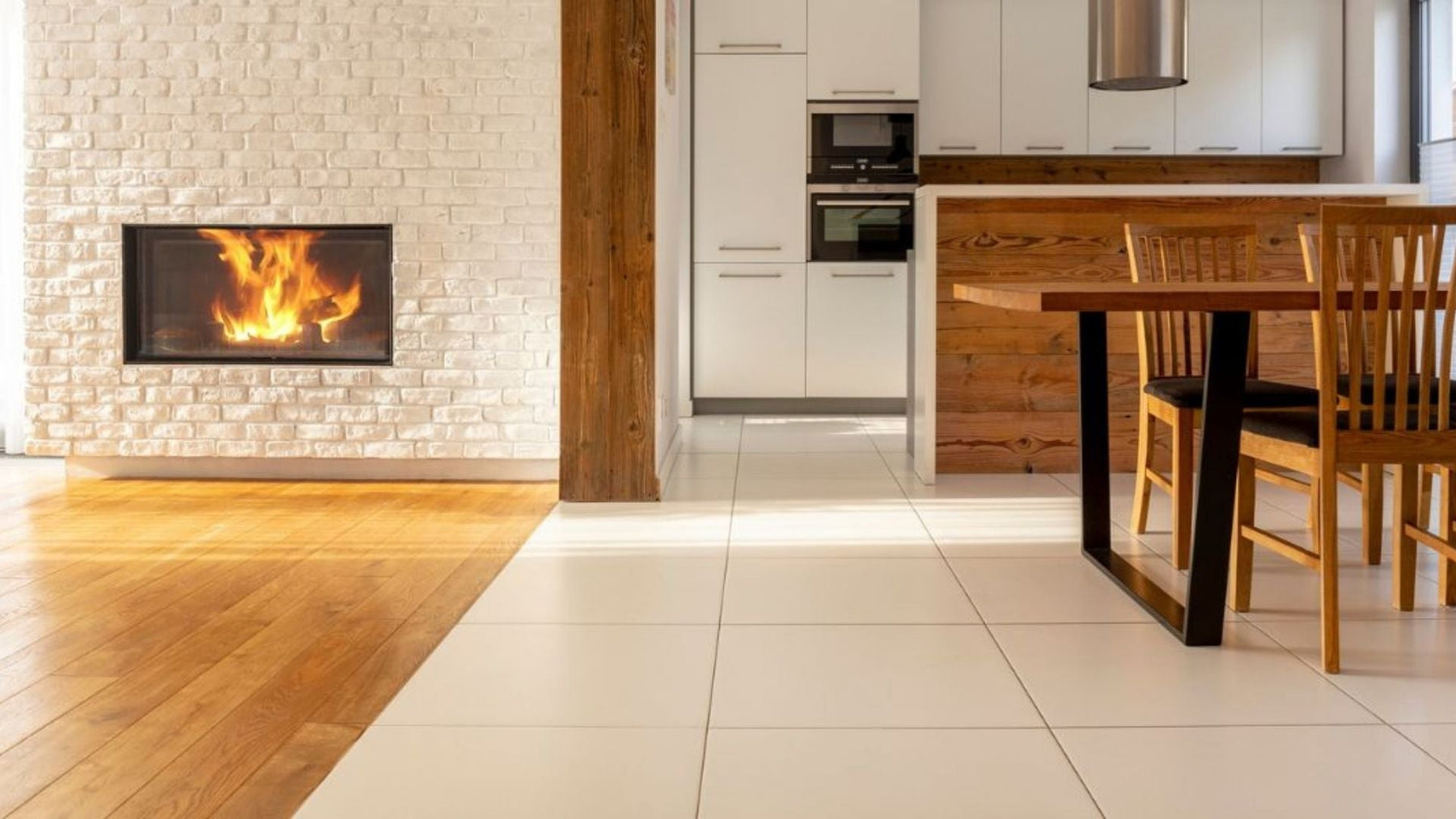

How to Plan Tile and Hardwood Transition Design?

Tile and hardwood transition design should be planned by looking at floor height, material thickness, room function, moisture exposure, layout direction, color harmony, and the overall interior style. A good transition is not just a strip between two surfaces. It is a design detail that helps tile and hardwood feel connected, intentional, and comfortable underfoot. When the transition is planned well, the floor looks cleaner, the walking surface feels safer, and the materials perform better over time.

Tile and hardwood are often used together because they solve different design problems. Tile works beautifully in areas exposed to moisture, spills, dirt, and heavy use, while hardwood adds warmth, natural character, and visual continuity to living areas. The challenge is making these two materials meet in a way that looks elegant instead of accidental. That is why the transition should be considered early in the design process, before tile size, wood direction, threshold type, and installation height are finalized.

What Is a Tile and Hardwood Transition?

A tile and hardwood transition is the point where tile flooring meets hardwood flooring. This can happen in a doorway, between a kitchen and living room, at the edge of an entryway, around a fireplace, or within an open-concept layout. The transition may be simple and almost invisible, or it may become a decorative feature that defines a zone within the interior.

Transitions are needed because tile and hardwood are different materials. Tile is usually installed with mortar, grout, and sometimes underlayment or waterproofing layers. Hardwood may be solid, engineered, glued, nailed, or floated depending on the project. These differences affect finished height, movement, moisture response, and edge protection.

A successful tile-to-hardwood transition should solve both design and performance needs. It should cover or finish the joint, protect exposed material edges, allow the materials to respond to normal movement, and create a smooth visual connection. In premium interiors, this detail is especially important because the floor is one of the largest visible surfaces in the space.

Why Tile and Hardwood Transitions Matter in Interior Design

Tile and hardwood transitions matter because they affect safety, durability, and visual flow. Even a beautiful tile and a high-quality hardwood floor can look unfinished if the meeting point is poorly planned. A visible height difference, awkward strip, mismatched color, or poorly placed joint can make the whole flooring layout feel disconnected.

From a safety point of view, the transition should reduce tripping risk. If tile sits higher than hardwood, or hardwood sits higher than tile, the edge needs to be managed with a reducer, threshold, or carefully planned flush installation. In high-traffic areas such as kitchens, hallways, and entryways, this detail becomes even more important.

From a design point of view, the transition helps control how the eye moves from one area to another. In an open-concept home, the transition may define where the kitchen ends and the living room begins. In a bathroom doorway, it may create a clean separation between a wet zone and a dry zone. In an entryway, it can frame durable tile while allowing hardwood to continue into the main interior.

Where Are Tile and Hardwood Transitions Commonly Used?

Tile and hardwood transitions are common in many residential and commercial interiors. The most common example is the kitchen-to-living-room transition. Tile can protect the kitchen floor from spills and heavy use, while hardwood keeps the living area warm and continuous. In open-plan spaces, the transition should usually align with a kitchen island, cabinet line, ceiling beam, or architectural break.

Bathroom-to-hallway transitions are also common. Tile is practical inside the bathroom because it handles moisture better than wood, while hardwood may continue through the hallway or bedroom area. In this case, a stone threshold, marble saddle, or low-profile transition can create a refined and moisture-conscious detail.

Entryways are another strong use case. Tile can handle shoes, dirt, rain, and daily traffic near the door, while hardwood can begin after the entry zone. A framed tile layout, natural stone inlay, or straight linear transition can make the entry feel planned rather than patched together.

Other common locations include laundry rooms, mudrooms, dining areas, fireplace surrounds, sunrooms, powder rooms, and boutique commercial spaces. In each case, the transition should match both the function of the room and the design language of the project.

Main Types of Tile and Hardwood Transition Designs

Flush Tile to Hardwood Transition

A flush transition is one of the cleanest and most premium-looking options. It means the tile and hardwood meet at the same finished height, creating a smooth surface without a raised strip. This is especially popular in modern interiors where clean lines and visual continuity are important.

However, a flush tile to hardwood transition requires careful planning before installation. Tile thickness, mortar bed thickness, underlayment, hardwood thickness, and subfloor height all affect the final level. If the materials are selected without checking these details, the installer may need to compensate later with a reducer or threshold.

Flush transitions work best when the flooring plan is coordinated early. They are ideal for open-concept kitchens, modern entryways, and premium interiors where a minimal look is desired.

Transition Strip Between Tile and Hardwood

A transition strip is a practical solution when two floors meet at different heights or when the joint needs extra protection. Transition strips can be made from wood, metal, vinyl, stone, or other materials. In luxury interiors, low-profile metal strips, stained hardwood strips, or stone thresholds usually look more refined than bulky generic profiles.

A transition strip is not always a design compromise. When selected carefully, it can become a clean architectural line. For example, a slim brass-toned metal profile may suit a contemporary kitchen, while a stained wood reducer may blend naturally with traditional hardwood flooring.

Marble or Natural Stone Threshold

A marble or natural stone threshold creates a more elevated transition between tile and hardwood. This option is especially suitable for bathrooms, powder rooms, entryways, and formal interiors. Natural stone thresholds can provide a clean break between materials while adding a sense of permanence and detail.

Marble, limestone, and travertine thresholds work well when the tile already includes stone tones or natural veining. A stone threshold can also help separate moisture-prone spaces from hardwood areas, especially at bathroom doorways.

Wood Border Around Tile

A wood border around tile can make the transition look more intentional. Instead of letting tile simply stop against hardwood, the wood frames the tile area like a design feature. This works well in foyers, dining spaces, and kitchen zones where the tile section needs visual definition.

The key is proportion. If the border is too thin, it may look accidental. If it is too wide, it may compete with the main flooring. The best wood borders usually match the hardwood floor and align with the room’s geometry.

Tile Inlay Within Hardwood Flooring

A tile inlay places tile inside a hardwood field, often for function or decoration. This can be used near fireplaces, under kitchen work zones, in entry areas, or around high-use surfaces. Natural stone tile, marble mosaic, or porcelain tile can all work depending on the desired style.

Tile inlays require strong layout planning. The tile shape, grout width, wood direction, and border detail should be decided before installation. This style can look impressive, but it should be used with restraint so the floor does not become visually busy.

Irregular or Organic Tile-to-Wood Transition

Organic transitions use hexagon tile, mosaic tile, curved edges, or staggered patterns that appear to flow into hardwood. This type of transition can look creative and modern, especially in boutique interiors, cafés, studios, or playful residential spaces.

However, irregular transitions are harder to install cleanly. Every cut matters, and the edge detail must be handled carefully. This option works best when the design has a clear reason, not simply because it looks unusual in photos.

How to Choose the Right Transition Style

The right tile and hardwood transition depends on the room, the materials, the floor levels, and the design goal. A bathroom doorway may need a different solution than an open-concept kitchen. A modern home may suit a flush metal profile, while a classic interior may look better with a marble threshold.

Before choosing a transition, check the room function. Is the space wet, dry, formal, casual, high-traffic, or decorative? Then look at floor height. If the tile and hardwood cannot finish at the same level, a reducer or threshold may be more practical than forcing a flush transition.

Material thickness is another major factor. Tile, mortar, underlayment, and hardwood all contribute to the final height. The transition profile should be selected after these layers are understood. Color is also important. The transition should either blend with one of the floors or create a deliberate contrast that suits the interior.

A practical checklist includes room function, moisture exposure, floor height difference, tile thickness, hardwood thickness, subfloor condition, traffic level, interior style, wood stain tone, tile finish, grout color, edge protection, maintenance expectations, and installation complexity.

Tile and Hardwood Transition Ideas by Room

Kitchen Tile to Hardwood Transition

A kitchen tile to hardwood transition should balance durability and warmth. Tile works well near cabinets, sinks, islands, and cooking zones because it is easier to clean and more resistant to spills. Hardwood works well in the surrounding living or dining area because it softens the space visually.

In open-concept kitchens, the transition should usually follow a strong architectural line. It can align with the island, cabinet run, ceiling detail, or change in room function. Large-format tile often creates a cleaner transition because it reduces grout lines and visual interruption.

Bathroom Tile to Hardwood Transition

Bathroom transitions require careful moisture planning. Tile is usually the better material inside the bathroom, while hardwood may continue outside the door. A marble saddle, stone threshold, or low-profile reducer can create a clean and practical separation.

The transition should not rely only on appearance. Waterproofing, subfloor preparation, ventilation, and professional installation all matter. In bathrooms, it is usually better to choose a slightly more protective transition than a purely decorative one.

Entryway Tile to Hardwood Transition

Entryways benefit from tile because the area receives dirt, water, shoes, and frequent traffic. Tile can create a durable landing zone, while hardwood can begin after the entry area. This approach works especially well when the tile is framed neatly and aligned with the doorway or hallway.

Natural stone tile can make an entry feel more premium, while porcelain tile can provide a practical and consistent surface. If you are comparing materials for this kind of project, Solidshape’s natural stone tile collection can help you explore marble, travertine, slate, limestone, and other stone options for floor transitions.

Fireplace Tile to Hardwood Transition

Fireplace areas often use tile or stone for both protection and design impact. A tile-to-hardwood transition around a fireplace can create a focal point while separating the hearth area from the main floor.

The layout should be symmetrical and proportionate. A poorly sized tile field can look like an afterthought, while a well-planned stone or tile surround can make the fireplace feel integrated into the room.

Open-Concept Tile and Hardwood Transition

Open-concept spaces need transitions that feel intentional. Because there is no doorway to hide the joint, the transition becomes part of the room’s architecture. The line should be placed where the eye expects a division: at a kitchen island, ceiling beam, wall return, furniture zone, or change in function.

Avoid placing transitions randomly across an open floor. If the joint does not connect to any architectural element, it may look awkward even if the materials are beautiful.

Choosing Tile Materials That Pair Well with Hardwood

Porcelain tile is one of the most flexible choices for hardwood transitions. It comes in many colors, sizes, and finishes, including stone-look, concrete-look, and marble-look options. It can work in kitchens, bathrooms, entryways, and commercial spaces.

Natural stone tile creates a more organic and premium effect. Marble, travertine, limestone, slate, and other stones bring natural variation, texture, and depth. These materials pair beautifully with hardwood because both have natural character. For a deeper material comparison, Solidshape’s guide to the differences between natural stone and porcelain tile is useful when deciding between authenticity, consistency, maintenance, and design style.

Marble tile works well with walnut, dark oak, and classic hardwood tones. Travertine and limestone pair well with warm oak, beige interiors, and Mediterranean-inspired spaces. Slate can work with rustic, industrial, or darker contemporary interiors. Concrete-look porcelain is strong for minimalist homes where the goal is subtle contrast rather than decorative detail.

Tile and Hardwood Color Matching Guide

Color matching is one of the most important parts of tile and hardwood transition design. The tile does not need to be the same color as the wood, but the undertones should feel compatible. A warm wood floor usually pairs better with beige, cream, taupe, travertine, or warm grey tile. A cool-toned hardwood may look better with grey porcelain, soft white stone, charcoal tile, or cooler marble tones.

Light oak works beautifully with soft neutral tile. White oak can pair with cream limestone, beige porcelain, light marble, or pale grey stone. Walnut pairs well with dramatic marble, dark stone, or warm neutral tile. Medium brown hardwood can work with travertine, limestone, terracotta-inspired tile, or stone-look porcelain.

Contrast can be effective, but it should be controlled. A dark tile beside a pale wood floor can look modern and bold, but the surrounding cabinetry, wall color, furniture, and lighting should support that contrast. If the room already has many strong materials, a calmer tile may be better.

Grout color also matters. A grout color that strongly contrasts with the tile can make the transition feel busier. A grout color close to the tile tone usually creates a softer and more seamless look.

Tile Size, Pattern, and Layout for Better Transitions

Tile size and pattern affect how smooth the transition feels. Large-format tile often creates a cleaner and more modern transition because there are fewer grout lines. This works especially well in kitchens, entryways, and open-plan interiors.

Small mosaic tile can create a decorative transition, but it needs careful control. It may work well in powder rooms, fireplace surrounds, or entry inlays, but it can look too busy if used across a large transition zone. Hexagon tile is popular for organic transitions because the edges can stagger into hardwood, but this approach requires precise cutting and strong design restraint.

Herringbone and chevron tile can look elegant beside hardwood, especially when the pattern direction is planned carefully. If the wood planks already create strong linear movement, the tile pattern should not fight against it. Straight lay tile usually creates the cleanest transition, while diagonal or decorative patterns need more planning.

Before final approval, it is smart to check real samples in the actual room. Online photos can show color and pattern direction, but they do not always show undertone, surface texture, finish, or how the material reacts to lighting. Solidshape’s guide on what to check before ordering a tile sample is especially helpful for avoiding surprises before installation.

Natural Stone Tile vs Porcelain Tile for Hardwood Transitions

Material	Appearance	Durability	Maintenance	Moisture Performance	Installation Complexity	Best Use Case	Premium Look
Natural stone tile	Organic, varied, authentic	Strong when properly selected	May need sealing depending on stone	Depends on stone type and finish	Usually requires skilled installation	Entryways, formal interiors, fireplace areas	Very high
Porcelain tile	Consistent, versatile, many styles	Very durable	Generally low maintenance	Strong moisture performance when properly installed	Moderate	Kitchens, bathrooms, open-plan spaces	High
Marble tile	Elegant, veined, classic	Durable but more sensitive than porcelain	Requires careful care	Needs proper sealing and maintenance	Skilled installation recommended	Bathrooms, thresholds, luxury interiors	Very high
Travertine tile	Warm, earthy, textured	Good when suited to project	May need filling or sealing	Depends on finish and use area	Skilled installation recommended	Transitional, Mediterranean, warm interiors	High
Limestone tile	Soft, refined, natural	Suitable when properly selected	Needs careful maintenance	More sensitive than porcelain	Skilled installation recommended	Calm luxury interiors, entries, powder rooms	High
Slate tile	Textured, darker, natural	Strong in many settings	Moderate maintenance	Depends on finish and installation	Moderate to skilled	Rustic, industrial, organic interiors	High
Ceramic tile	Wide style range	Good for many interiors	Easy to maintain	Good in appropriate indoor areas	Moderate	Budget-conscious indoor transitions	Medium
Mosaic tile	Decorative, detailed	Depends on material	More grout lines to maintain	Depends on installation and grout	More detailed installation	Inlays, fireplaces, powder rooms	High when used well

Neither natural stone nor porcelain is automatically the best choice for every hardwood transition. Natural stone is ideal when the goal is authentic variation and a premium material story. Porcelain is often better when the project needs consistency, easier maintenance, and strong moisture performance. The right choice depends on room use, budget, design style, and maintenance expectations.

How to Manage Height Differences Between Tile and Hardwood

Height difference is one of the most common problems in tile and hardwood transitions. Tile may sit higher because of mortar, underlayment, waterproofing, or tile thickness. Hardwood height depends on whether it is solid or engineered, and whether it is nailed, glued, or floated.

The best time to solve height differences is before installation begins. The installer should understand the complete flooring assembly, not just the surface material. A tile that looks thin in a sample may still finish higher once mortar and underlayment are included.

If the floors cannot be made flush, a reducer strip, threshold, or custom transition profile may be needed. A reducer creates a gradual change from one height to another. A stone threshold can create a more formal break. A metal profile can provide a clean modern edge. The goal is to make the change safe, durable, and visually appropriate.

For structural, moisture-sensitive, or uneven subfloor conditions, professional installation advice is essential. Floor transitions are not only decorative; they also affect performance and safety.

Transition Strips, Thresholds, and Edge Profiles

Transition strips, thresholds, and edge profiles solve different problems. A T-molding is often used when two hard surfaces are similar in height and need a finished joint. A reducer strip is used when one floor is higher than the other. A flush metal profile can protect the tile edge while keeping the design minimal.

Wood transition strips work well when the goal is to blend with hardwood. They can be stained to coordinate with the floor and are common in traditional or transitional interiors. Stone thresholds work well in bathrooms, entries, and luxury spaces where the transition should feel more architectural.

A marble saddle is a classic choice for bathroom doorways. A Schluter-style metal edge profile can create a very clean line between tile and wood. A custom hardwood border can make tile look framed and intentional. In high-end minimal interiors, a shadow gap or slim profile may be used, but only when the installation conditions support it.

Design Styles That Work Well with Tile and Hardwood Transitions

Modern Minimalist Interiors

Modern minimalist interiors usually benefit from flush transitions, large-format tile, pale wood, low-profile metal profiles, and neutral colors. The goal is to reduce visual interruption. White oak with light grey porcelain or cream stone can create a calm and architectural look.

Warm Transitional Interiors

Warm transitional interiors combine classic comfort with cleaner contemporary lines. Beige tile, travertine, limestone, soft marble, and medium-tone hardwood all work well in this style. The transition should feel soft rather than sharply contrasting.

Classic Luxury Interiors

Classic luxury interiors often use marble thresholds, polished stone, rich hardwood, and detailed borders. A marble tile to walnut hardwood transition can feel elegant when the veining and wood tone are balanced. This style works especially well in foyers, powder rooms, and formal living spaces.

Rustic and Organic Interiors

Rustic interiors can handle more texture. Travertine, slate, limestone, and irregular stone-look tile can pair beautifully with warm hardwood. The transition may be slightly more expressive, but it should still be clean and functional.

Contemporary Open-Concept Interiors

Contemporary open-concept interiors need transitions that define zones without making the space feel divided. The tile line may follow a kitchen island, dining zone, or furniture layout. Hardwood color is especially important in these spaces, so reviewing modern hardwood flooring colors can help when coordinating wood tone with tile, cabinetry, and wall finishes.

Lighting and Visual Flow in Tile-to-Hardwood Transitions

Lighting changes how tile and hardwood look together. Glossy tile reflects more light and can appear brighter than matte hardwood. Matte tile feels softer and may blend more naturally with wood. Strong daylight can reveal undertones that are not obvious in showroom lighting.

Wood grain direction and tile veining direction should also be considered. If both materials have strong linear movement, they should either align intentionally or contrast in a controlled way. Random direction changes can make the floor feel visually restless.

Warm lighting can make beige tile and warm wood feel richer. Cool lighting can make grey tile and cool-toned wood feel more modern. Before final selection, samples should be reviewed in the actual room during both daytime and evening lighting.

Common Mistakes to Avoid in Tile and Hardwood Transition Design

One common mistake is ignoring floor height until installation begins. This can lead to awkward reducers, visible lips, or unsafe edges. Another mistake is choosing materials only from online photos without checking real samples. Tile and wood can look very different under real lighting.

Many projects also fail because too many colors or patterns are used together. A bold tile, strong grout, busy wood grain, and dramatic cabinetry can overwhelm the transition. It is usually better to let one material lead and the other support it.

Other mistakes include forgetting wood undertones, selecting the wrong transition strip, placing transitions randomly in open spaces, ignoring moisture exposure, using indoor-only materials in wet zones, choosing grout that clashes with the hardwood, skipping maintenance research, and overcomplicating the layout.

Professional guidance is especially important when the transition involves a bathroom, uneven subfloor, structural movement, exterior door, radiant heat, or expensive natural materials.

Is a Flush Tile and Hardwood Transition Worth It?

A flush tile and hardwood transition is worth considering when the goal is a seamless, premium, and modern floor design. It creates a clean surface and makes the two materials feel more integrated. This is especially valuable in open-concept spaces where the transition is highly visible.

However, a flush transition requires more planning than a standard strip. The tile, mortar, underlayment, hardwood thickness, and subfloor must be coordinated carefully. If the materials are selected late, achieving a flush finish may become difficult or expensive.

In some projects, a transition strip or stone threshold is actually the better choice. If there is already a height difference, if the doorway needs moisture separation, or if the design style suits a more defined break, a threshold can be both practical and beautiful. The best transition is not always the least visible one; it is the one that fits the project.

FAQ

What is the best transition between tile and hardwood?

The best transition depends on floor height, room function, and design style. A flush transition is ideal for a seamless modern look, while a reducer, metal profile, wood strip, or stone threshold may be better when there is a height difference. Bathrooms and entryways often benefit from more protective transition details.

Can tile and hardwood be flush with each other?

Yes, tile and hardwood can be flush if the floor assembly is planned before installation. The installer must consider tile thickness, mortar, underlayment, hardwood thickness, and subfloor height. This is easier in new construction or full remodels than in projects where one floor already exists.

Do I need a transition strip between tile and hardwood?

Not always, but many projects need some kind of transition detail. If the floors are not the same height, a transition strip or reducer can improve safety and appearance. If the floors are flush, a slim profile or carefully finished joint may be enough.

What is the best tile for a hardwood transition?

Porcelain tile is practical and versatile, while natural stone tile creates a more premium and organic look. Marble, travertine, limestone, slate, and stone-look porcelain can all work depending on the interior style. The best choice should match the hardwood tone, room function, and maintenance expectations.

How do you transition from kitchen tile to hardwood?

The cleanest approach is to align the transition with a kitchen island, cabinet line, doorway, or architectural break. Large-format tile and a straight transition line often work well in open kitchens. If there is a height difference, a reducer or low-profile transition strip may be needed.

Is a marble threshold good between tile and hardwood?

A marble threshold can be an excellent choice, especially for bathrooms, powder rooms, entryways, and luxury interiors. It creates a defined and elegant break between materials. It should be selected in a tone that works with both the tile and the hardwood.

How do you match tile color with hardwood flooring?

Start by identifying the undertone of the wood. Warm wood usually pairs well with beige, cream, taupe, travertine, or warm grey tile. Cool-toned wood often works better with grey porcelain, white marble, charcoal tile, or cooler stone tones.

Can hardwood touch tile directly?

Hardwood and tile should not simply be forced together without considering movement, edge protection, and installation requirements. Both materials need a properly planned joint or transition detail. The exact method should be decided by a flooring professional based on the installation system.

What causes height differences between tile and hardwood?

Height differences usually come from tile thickness, mortar bed thickness, underlayment, waterproofing layers, subfloor conditions, and hardwood thickness. Solid hardwood, engineered hardwood, and floating floors can all finish at different heights. Planning these layers early helps avoid awkward transitions.

Are tile-to-hardwood transitions expensive?

The cost depends on the transition type and installation complexity. A basic transition strip is usually simpler, while a flush transition, custom wood border, or stone threshold may require more planning and labor. Premium materials can cost more, but they often create a more refined final result.

What is the best transition for bathrooms?

Bathrooms often work well with a stone threshold, marble saddle, or moisture-conscious transition profile. The goal is to separate the wet tile zone from the hardwood area outside. Waterproofing, ventilation, and professional installation are especially important.

Can hexagon tile transition into hardwood?

Yes, hexagon tile can transition into hardwood for a creative and modern look. This design works best in entries, kitchens, boutique interiors, or feature zones. It requires precise cutting and careful layout so the result looks intentional rather than messy.
