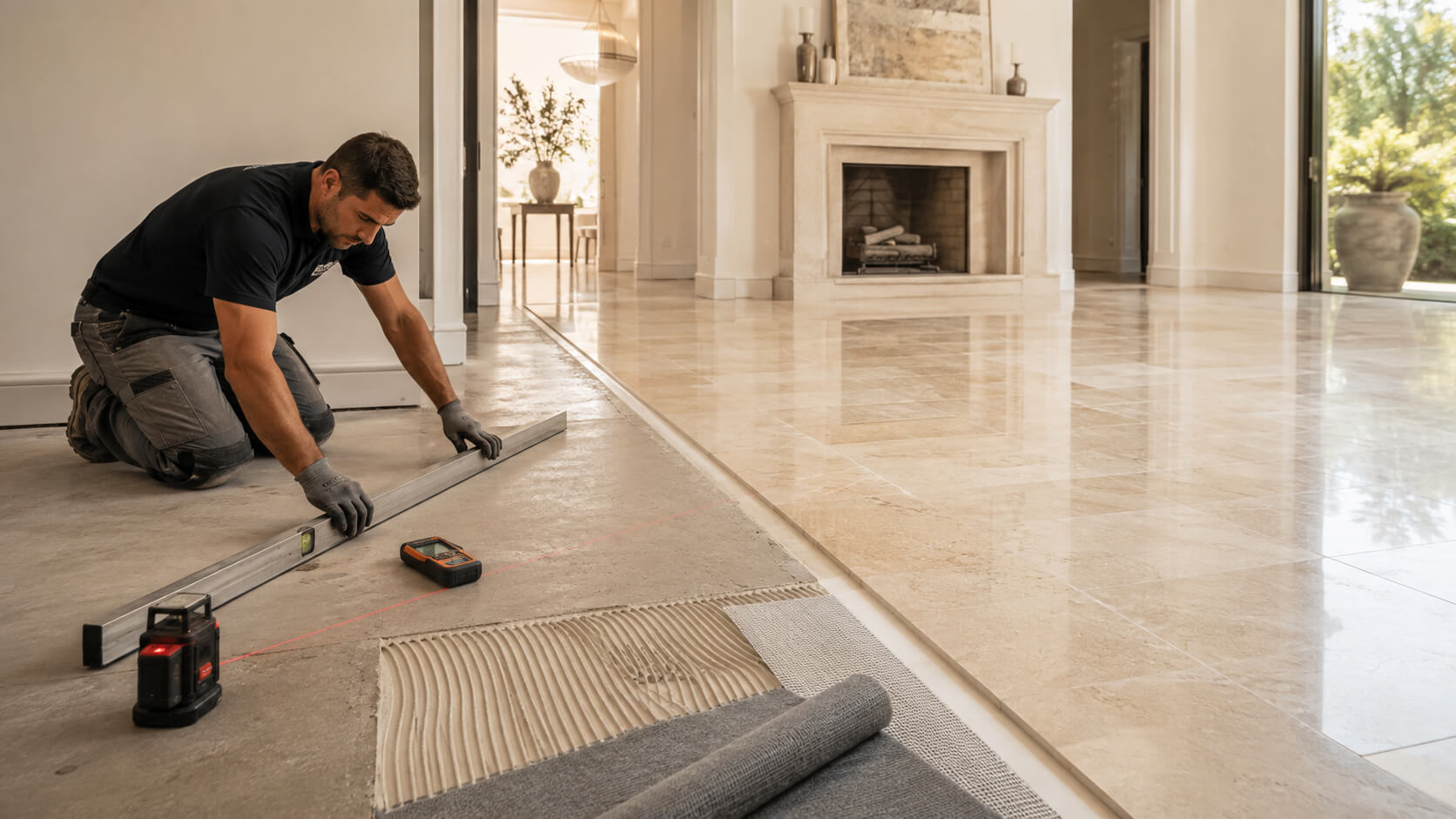

Subfloor preparation is important before natural stone installation because marble, travertine, limestone, slate, granite, and other stone tiles cannot compensate for excessive structural movement, poor flatness, contamination, or moisture problems beneath them. The Ceramic Tile Education Foundation states that a wood-framed floor supporting natural stone must meet an L/720 deflection criterion, compared with L/360 for ceramic tile, making the stone assembly substantially more demanding structurally. CTEF also notes that natural stone installations require 95% mortar coverage in interior, exterior, wet, and dry applications.
That makes the hidden layers under a stone floor as important as the stone itself. A premium marble tile installed over a flexible or uneven floor can still crack; a carefully selected limestone can still develop lippage if the substrate is out of plane; and a correctly mixed mortar cannot solve structural bounce or an uncontrolled moisture condition.
For homeowners, architects, designers, developers, and contractors, the practical rule is simple: evaluate the floor system first and select the stone second. Subfloor preparation is not merely a cosmetic installation step. It is the process that establishes whether the finished stone assembly has a technically suitable foundation.
Subfloor preparation is the evaluation and correction of the structural floor and bonding surface before tile-setting materials are applied. Three related terms are useful to distinguish:
The subfloor is normally the structural panel or concrete slab supporting the floor assembly.
An underlayment is an intermediate product such as plywood underlayment, cement backer board, a self-leveling material, or a membrane.
The substrate is the actual surface onto which the tile-setting system is bonded.
A substrate can therefore be clean yet structurally unsuitable, or structurally strong yet too uneven for a quality stone installation. Preparation has to address both conditions.
Natural stone receives special attention because it does not behave exactly like manufactured ceramic tile. Current CTEF guidance explains that stone over wood framing requires greater floor-system stiffness and, when using the referenced backer-board method, two structural wood-panel layers rather than a single panel layer beneath the backer board.
The Natural Stone Institute's 2024 Dimension Stone Design Manual likewise treats substrate flatness, lippage, concrete and wood-frame installations, heated floors, and maximum deflection as specific design considerations for horizontal natural stone installations.
The aesthetic choice still matters, of course. A designer may be comparing pale limestone, heavily veined marble, rustic travertine, slate, or another option within a premium natural stone tile collection, but the underlying floor must be suitable for the selected material, format, installation method, and intended traffic.
One important distinction is that flat does not necessarily mean level. A floor can intentionally slope—for example toward a drain—and still provide a sufficiently consistent plane for tile. Conversely, a technically level floor may have local humps and depressions that make a large-format stone installation difficult.
Structural stiffness is the first major advantage.
For horizontal natural stone over wood framing, the referenced industry criterion is L/720. L/720 means that allowable bending is limited relative to the span; it is a stricter criterion than L/360 for ceramic tile. CTEF describes this as requiring a floor system approximately twice as stiff in deflection terms.
The requirement does not disappear simply because the pieces are small. In an NTCA-supported technical response published by TileLetter, the second plywood layer was still required for a 3/4-by-3/4-inch marble mosaic over a wood-framed floor. The explanation identifies the panel joint over a joist as a potential “hinge” location where concentrated bending can lead to cracked stone or grout.
This is why choosing a small mosaic is not a reliable workaround for an inadequately stiff structural floor.

Substrate flatness strongly affects lippage, grout-joint consistency, and the visual quality of polished or honed stone.
Technical guidance published by Custom Building Products cites a maximum substrate variation of 1/8 inch in 10 feet and 1/16 inch in 24 inches for natural stone and large-format tile under the referenced TCNA criteria.
Why does that matter aesthetically? When a rigid tile spans a depression or encounters a hump, the installer must either alter mortar thickness or allow one edge to sit differently from the next. With large marble or limestone tiles—especially polished products illuminated by windows or grazing architectural lighting—even small changes in plane become visually conspicuous.
Subfloor correction therefore supports both technical performance and better visual continuity.
Natural stone requires 95% mortar coverage, according to the ANSI A108 requirement summarized by CTEF, regardless of whether the installation is interior, exterior, wet, or dry.
A flat substrate makes that target easier to achieve because the mortar is not being asked to compensate simultaneously for deep depressions and tile bonding.
This is also why thin-set mortar should not be treated as a general floor-leveling material. Custom Building Products explicitly states that thin-set bond coats are designed to bond tile to the substrate rather than function as leveling agents.
Concrete can appear dry at the surface while still containing substantial internal moisture.
ASTM F2170 uses in-situ probes to determine relative humidity within a concrete floor slab. ASTM explains that excessive slab moisture after a floor covering is installed can contribute to failures including debonding, peaking, deterioration of finishes, and microbial growth. ASTM also emphasizes that moisture readings describe the slab only at the tested locations and time.
There is not one universal RH percentage that can safely be applied to every natural stone installation system. Mortars, primers, membranes, self-leveling products, and moisture-control products have their own published limits.
For example, one Custom Building Products self-leveling system cites limits of 80% RH under ASTM F2170 or 5 pounds per 1,000 square feet per 24 hours under ASTM F1869, while explicitly directing installers to follow the flooring and preparation-product manufacturer's requirements. Those numbers are product-system limits, not universal natural-stone limits.
Waterproofing, crack isolation, and uncoupling are related concepts, but they are not interchangeable.
ANSI A118.10 covers waterproofing membranes used beneath thin-set tile systems, while ANSI A118.12 applies to crack-isolation membranes. A current Sika stone-and-tile membrane, for example, is tested to both standards and is designed to manage water and nonstructural crack movement beneath tile or stone.
That does not mean a membrane repairs an unstable structure. Crack-isolation systems are intended primarily to manage defined in-plane, nonstructural movement within their tested capabilities. Structural displacement, vertical movement, damaged framing, or active foundation problems require diagnosis and correction rather than simply covering the problem with a membrane.
Movement joints also remain essential. In exterior installations, LATICRETE's guidance referencing TCNA EJ171 calls for movement joints at 8-to-12-foot intervals in each direction, with the project design team responsible for actual locations and details.
Bathrooms, kitchens, foyers, hallways, and upper-level living spaces frequently have wood-framed floors. These are among the most important applications in which to verify joist span, spacing, structural-panel construction, dead load, live load, and inter-joist deflection.
A cement backer board placed over a flexible floor does not automatically make that floor structurally suitable for stone. The structural system must satisfy the stone installation criteria first.
Concrete can provide an excellent substrate when it is sound, sufficiently flat, clean, dimensionally appropriate for the installation system, and within the selected products' moisture limits.
Before direct bonding, the slab should be evaluated for cracks, curing compounds, coatings, paint, adhesive residue, contamination, moisture conditions, construction joints, and plane variation.
An existing concrete crack also needs classification. A stable shrinkage crack may be appropriate for an approved crack-isolation treatment, while a moving structural crack or vertical displacement requires professional evaluation.
Natural stone itself is a finish material, not a substitute for a complete waterproofing assembly.
Wet installations require drainage, correct slopes, compatible waterproofing, sealed penetrations, and appropriate movement accommodation. ANSI A118.10-compliant waterproofing products are among the systems designed for this role.
The stone must also be suitable for the specific wet application; polished finishes, highly absorbent stones, and moisture-sensitive materials may require different design decisions from dense or textured stones.
Large pieces reduce the number of grout joints, which makes substrate irregularities harder to disguise. The stricter flatness criteria discussed above are therefore especially important in minimalist interiors using broad marble or limestone fields.
Large-format stone also tends to make floor-height transitions, doorway details, cabinetry interfaces, and perimeter movement zones more consequential during planning.
Natural stone works well visually with radiant-floor design, but the complete assembly—not simply the heating cable—must be specified.
The Natural Stone Institute's horizontal-surfaces guidance specifically includes heated floor systems among the applications for which stone installation design needs to be considered.
Structural suitability, heating-system compatibility, underlayment requirements, expansion and contraction, membrane placement, and mortar suitability should all be resolved before the stone is installed.
Exterior installations add rain, thermal cycling, direct sun, drainage, and—in colder regions—freeze/thaw exposure.
LATICRETE notes that moisture entering exterior concrete or mortar beds increases freeze/thaw risk and recommends addressing flatness, drainage, waterproofing or crack isolation where appropriate, and movement accommodation as part of the assembly design.
For exterior projects, Solidshape's outdoor stone installation preparation guide provides additional planning context for weather exposure and substrate preparation.
Installation should be postponed when the floor has unresolved structural movement, rot, delamination, active displacement cracks, contamination that prevents bonding, unacceptable moisture conditions for the selected system, or plane variation outside the installation requirements.
Stone should also not be installed simply because a patch, backer board, or membrane can physically cover a defect. A preparation product should address the defect it was designed to address.
When joist adequacy, structural loading, slab movement, or foundation performance is uncertain, a structural professional or appropriately qualified contractor should evaluate the condition before the finish floor is specified.
Large marble, limestone, or travertine tiles create long visual lines and relatively few grout joints. This aesthetic makes substrate flatness especially important.
A slight ridge that might visually disappear in a rustic mosaic can produce noticeable edge variation across a 24-inch or larger polished stone tile. Lighting intensifies this effect: sunlight from floor-to-ceiling glazing or low-angle artificial light casts shadows along raised edges.
For minimalist interiors, substrate tolerances should therefore be treated as part of the design specification rather than left until installation day.
Black-and-white or beige-and-cream checkerboard stone floors depend on precise repeating geometry.
A consistent substrate plane helps maintain regular grout lines and prevents alternating tiles from amplifying lippage. Designers should establish layout datum lines, finished floor elevation, door clearances, and transitions before underlayment thickness is finalized.
Intricate layouts increase the number of individual pieces and joints, but they do not remove the structural requirements for stone.
The NTCA-supported guidance discussed earlier specifically confirms that a small natural stone mosaic on a wood-framed floor still requires the appropriate stone-grade floor construction rather than relying on tile size to compensate for deflection.
Mosaics may visually tolerate some substrate variation better than very large polished tiles, but structural movement can instead reveal itself as cracked grout joints.
Curbless showers and continuous bathroom floors make substrate planning especially important because waterproofing, drain elevations, slope, floor thickness, movement joints, and stone finish all interact.
The desired seamless look should be achieved through coordinated construction—not by eliminating the functional transitions, slopes, or waterproofing layers the assembly needs.
Textured stone and wider joints can make minor visual variations less noticeable than a highly reflective polished marble floor.
However, a rustic finish changes the aesthetic tolerance, not the physics of the floor. Structural deflection, moisture suitability, substrate integrity, and bonding requirements still need to be satisfied.
The correct assembly depends on the existing structure rather than on a universal “best underlayment.” For higher-value stone installations, choosing a contractor familiar with stone-specific standards is important; Solidshape's guide to selecting a qualified natural stone installer explains useful criteria for evaluating that expertise.
Use this technical checklist before approving the installation:
Structural stiffness: For horizontal natural stone over framed floors, verify the applicable L/720 requirement and both joist and inter-joist deflection.
Wood-floor construction: Confirm whether the chosen TCNA/NSI installation method requires a second structural-panel layer and verify panel thickness, joist spacing, fastening, and orientation against the current specification.
Substrate flatness: Check the entire installation area with the measurement method required by the project specification; natural stone guidance commonly references 1/8 inch in 10 feet and 1/16 inch in 24 inches.
Moisture: Test concrete when required using an appropriate standard such as ASTM F2170 and compare the results with the actual mortar, primer, membrane, or underlayment manufacturer's limits.
Surface integrity: Remove bond-breaking contaminants and identify weak, dusty, delaminated, painted, sealed, or otherwise unsuitable surfaces.
Crack classification: Distinguish stable nonstructural cracking from active or vertically displaced structural cracking before selecting a crack-isolation product.
Waterproofing: In showers, wet rooms, exterior assemblies, and other water-exposed areas, specify the appropriate waterproofing rather than assuming grout or stone is the water barrier.
Movement accommodation: Coordinate perimeter, field, structural, and change-of-plane joints instead of filling every joint rigidly with mortar or grout.
Stone suitability: Confirm that the actual stone and finish are approved for the intended floor, wet area, exterior exposure, traffic, or climate.
Mortar compatibility and coverage: Select a mortar appropriate for the stone and installation system, with 95% required coverage for natural stone.
Floor height: Calculate the combined thickness of plywood, board, membrane, heating system, mortar, and stone before resolving doors, thresholds, cabinets, appliances, stairs, and adjacent flooring.
Climate exposure: Exterior projects should account for water, drainage, solar exposure, thermal movement, and freeze/thaw conditions.
Budget: Include investigation and correction in the project budget rather than assuming every existing floor is installation-ready.
Long-term maintenance: Consider access to drains and plumbing, movement-joint maintenance, stone cleaning requirements, and any sealer recommended for the selected material.
No single row in the following table should be interpreted as a universal substitute for another. A well-designed stone assembly may combine structural reinforcement, plywood, a backer board or mortar bed, leveling material, waterproofing, and a membrane because each solves a different problem.
|
Material/Option |
Appearance |
Durability with data |
Maintenance |
Cost range |
Best use case |
|
Complete stone-ready preparation |
Concealed; designed to create a flat, stable finished plane |
Targets the stone floor's applicable L/720 structural criterion over framed floors and supports the 95% mortar coverage requirement. |
Little direct maintenance once covered; movement joints and moisture sources still require monitoring |
Project-specific because structural work, leveling and membranes depend on existing conditions |
Premium marble, limestone, travertine and other stone floors where long-term risk control is more important than minimum initial cost |
|
Cement backer board only |
Concealed; a 1/4-in. board adds some floor height |
Provides a tile-friendly surface, but USG explicitly describes its cement board as not a structural panel; it does not replace required structural stiffness. |
None after installation if the assembly remains dry and stable |
Current U.S. retail example: about $0.83/sq. ft. material only, excluding mortar, fasteners and labor. |
Useful as an approved tile substrate after the underlying stone-grade floor structure is already adequate |
|
Uncoupling membrane |
Concealed and thin; one current DITRA product is approximately 1/8 in. thick |
Designed to manage differential movement; the cited product also provides waterproofing/vapor-management functions, but it does not turn an inadequate stone floor into an L/720 structure. |
No routine access after tile; preserve required movement joints |
Current U.S. DITRA example: about $2.01/sq. ft. material only. |
Useful where an approved stone installation system calls for uncoupling or a low-build underlayment |
|
Crack-isolation membrane |
Usually concealed with minimal visual effect or elevation increase |
ANSI A118.12-compliant products are intended to reduce transmission of qualifying nonstructural cracks; capabilities are product-specific. One current tested system specifies crack isolation up to 1/8 in. |
Normally none after installation, although active movement must still be investigated |
Current U.S. retail examples for crack-resistant membranes are roughly $0.95–$1.60/sq. ft. material only. |
Better than backer board alone when the identified risk is qualifying in-plane substrate cracking rather than structural deflection |
|
Self-leveling underlayment |
Concealed; can add from a thin correction to significant build-up depending on product |
Effective for correcting plane variation, but NTCA guidance says SLU should not automatically be assumed to remove structural deflection. Custom's technical paper requires the stone substrate to meet L/720 before the SLU is relied upon as the finish substrate. |
None after covering; installation-system moisture conditions must be respected |
One 2026 estimator places compound plus primer at $1.25–$2.80/sq. ft. and professional installation at $3.50–$6.50/sq. ft.; local pricing and depth can vary substantially. |
Better when the floor is structurally adequate but needs broad flatness correction for large stone |
|
Direct bond to prepared concrete |
Lowest build-up because no separate board is inherently required |
Can be highly effective when the slab is structurally sound, flat, clean, moisture-compatible and free of problematic movement; ASTM recommends moisture testing when required by the flooring system. |
Monitor building movement, water intrusion and soft joints |
No mandatory underlayment cost if the slab passes all criteria; cleaning, grinding, testing, patching or membranes add project-specific costs |
Often the most efficient choice for a high-quality existing slab that already satisfies the chosen installation system |
Retail prices above are planning references rather than installation quotations. Local pricing, package size, labor, substrate condition, floor area, accessibility, regional wage levels, and system warranties can significantly change the final cost.
Proper subfloor preparation has an unusual maintenance advantage: once the floor is installed, the structural layers normally require no routine cleaning or refinishing because they are inaccessible.
The objective is instead to prevent conditions that undermine them.
Water leaks should be corrected promptly rather than allowed to remain beneath a stone assembly. Flexible movement joints should be inspected as part of normal building maintenance and renewed when the specified sealant system reaches the end of its service condition. Cracked grout, recurring perimeter compression, or a new pattern of stone cracks can indicate movement that deserves investigation rather than repeated cosmetic patching.
There is no credible universal service-life number for every natural stone floor assembly. Stone type, framing, slab behavior, moisture, traffic, installation workmanship, mortar coverage, movement design, and maintenance all affect longevity. For that reason, a claimed fixed lifespan without reference to the actual assembly is less useful than verifying the installation criteria.
The visible stone also needs material-appropriate care. Solidshape's guide to cleaning natural stone floors safely covers cleaning practices for protecting the finished surface without relying on unnecessarily aggressive products.
Sealing should likewise be based on the porosity of the specific stone, exposure, sealer type, and manufacturer guidance rather than an arbitrary annual schedule. A dense granite and an open-pored travertine do not necessarily require the same treatment.
The most consequential mistake is assuming that any floor suitable for ceramic is automatically suitable for stone. The L/720 versus L/360 distinction shows why that assumption can fail.
Cement board creates a compatible tile substrate but should not be confused with structural reinforcement. USG itself describes Durock cement board as nonstructural.
Self-leveling products are designed primarily to correct surface plane. NTCA's technical guidance warns that commonly used CBU and SLU products should not automatically be credited with eliminating structural deflection.
Thin-set is intended as a bonding material. Custom Building Products specifically warns that thin-set bond coats are not formulated as leveling agents.
Surface appearance does not substitute for moisture testing. ASTM F2170 exists specifically to measure internal slab RH where the flooring system requires it.
Crack-isolation membranes can manage qualifying in-plane, nonstructural cracks within their tested limits. They are not a repair strategy for ongoing structural displacement or foundation movement.
Continuous stone fields may look more refined without visible soft joints, but removing necessary movement accommodation can transfer building movement directly into grout and stone. Exterior installations are especially sensitive to thermal movement.
A water-durable board is not necessarily a complete waterproofing assembly. Wet areas must be designed using an appropriate membrane or other approved waterproofing system.
A second plywood layer, heating system, mortar, membrane, underlayment, and stone can create a thicker assembly than expected. Failure to calculate total build-up early can create problems at door thresholds, stairs, cabinets, appliances, and adjoining flooring.
The NTCA-supported guidance stresses that stone performance depends on the overall floor and the deflection between supporting members—not simply a joist-span calculation.

Yes—when natural stone is the chosen finish, proper subfloor preparation is usually one of the most rational places to protect the investment.
A June 2026 HomeAdvisor cost guide places a typical U.S. natural stone flooring project at about $1,970, with a reported normal project range of $915 to $3,089. The same guide estimates stone material at roughly $2 to $45 per square foot and installation labor at approximately $5 to $14 per square foot, depending on stone type and project complexity.
Those numbers are national planning estimates rather than project quotations, but they show the cost logic clearly: the visible finish and skilled installation can represent a meaningful investment before demolition, leveling, reinforcement, moisture control, backer-board replacement, or other preparation is considered.
Skipping preparation does not eliminate the underlying condition. It simply places a higher-value finish over it.
At the same time, more preparation is not automatically better. A sound, flat, clean, moisture-compatible concrete slab may need far less intervention than an old framed floor with excessive deflection. Adding unnecessary layers can waste money and create unwanted elevation changes.
The goal is therefore appropriate preparation, not maximum preparation.
For a premium residential or commercial stone project, paying to identify structural stiffness, moisture, flatness, movement, waterproofing, and compatibility before installation is generally more defensible than paying later to remove finished stone and reconstruct the same assembly. CTEF explicitly warns that treating natural stone like ceramic over unsuitable wood framing can result in costly replacement.

Some approved stone systems involve plywood, but natural stone should not simply be bonded over an arbitrary single-layer wood floor. For the TCNA F250 stone method discussed by CTEF, the wood-framed assembly requires two structural-panel layers before the backer-board portion of the system. Always verify the current TCNA/NSI method and installation-product requirements for the project.
For the referenced wood-framed natural stone method, yes. CTEF and NTCA guidance explain that the additional structural-panel layer is used to control panel-joint and inter-joist movement associated with stone installations.
Under the TCNA stone method discussed by NTCA's technical expert, yes. The response specifically addresses a 3/4-inch marble mosaic and states that the small size does not exempt the installation from the second-layer requirement.
Not by itself if the floor structure is inadequate. Cement board provides a suitable bonding substrate, but USG states that its cement board is not a structural panel, and NTCA guidance warns that CBU should not be assumed to eliminate floor deflection.
The natural-stone guidance cited by Custom Building Products specifies no more than 1/8 inch variation in 10 feet and 1/16 inch in 24 inches. The project should ultimately follow the current applicable ANSI/TCNA specification and the selected stone and installation system.
Do not assume that it can. NTCA guidance explains that typical self-leveling and cementitious underlayments are not automatically designed to remove structural deflection. Structural adequacy should be established independently or verified by the product's engineered assembly data.
No universal rule makes one membrane mandatory for every project. The correct choice depends on substrate type, cracks, moisture exposure, stone type, framing, installation method, and manufacturer instructions. When crack isolation is specified, ANSI A118.12 is the relevant performance standard for compliant crack-isolation membranes.
The stone finish itself should not be treated as the waterproofing layer. Showers, wet rooms, shower pans, and other water-sensitive assemblies require the waterproofing specified by the project design and applicable installation method. ANSI A118.10 is the standard referenced for thin-set waterproofing membranes.
Yes, direct bonding can be appropriate when the concrete is sound, clean, sufficiently flat, compatible with the setting system, and within the products' moisture requirements. Existing cracks, movement joints, coatings, curing compounds, contamination, moisture, and hydrostatic conditions should be assessed first.
ASTM F2170 is a recognized method for determining internal relative humidity in concrete slabs using in-situ probes. ASTM advises that flooring-system manufacturers commonly require moisture testing and that readings represent the slab only at the tested locations and time.
CTEF's summary of ANSI A108 requirements states that natural stone requires 95% mortar coverage in interior, exterior, wet, and dry installations.
It can be used in properly engineered heated-floor assemblies, and the Natural Stone Institute's horizontal-surface guidance specifically addresses heated floors. The heating system, substrate, structural design, membrane, mortar, stone, movement accommodation, and operating conditions must all be compatible.
Basic visual inspection and planning are useful for homeowners, but structural deflection, joist adequacy, concrete moisture interpretation, active cracking, waterproofing, and load-related decisions can affect the entire floor assembly. Those conditions are better evaluated by qualified tile professionals, builders, engineers, or system manufacturers as appropriate.
